Filter Blocking Tendency Tester

Tamson Instruments



The Tamson Filter Blocking Tendency Tester is an automated device that measures the Filter Blocking Tendency (FBT) of distillate fuels such as diesel, biodiesel (B100, B5–B30), gas oil, kerosene, and turbine fuels. Compliant with ASTM D2068 and IP 387, it helps detect potential filter clogging issues caused by fuel contamination, degradation, or FAME-related cold flow problems. The system features a graphical touchscreen interface that guides users through standardized test procedures for reliable and repeatable results. Fuel is drawn from an integrated reservoir at a constant flow rate, with continuous monitoring of pressure, temperature, and fluid level. The instrument automatically calculates and displays the FBT value, which can be printed and customized through user-defined parameters and calibration settings.

What can we do for you?

If you want more specific information regarding this product, please contact our Sales team.
We are happy to assist you.

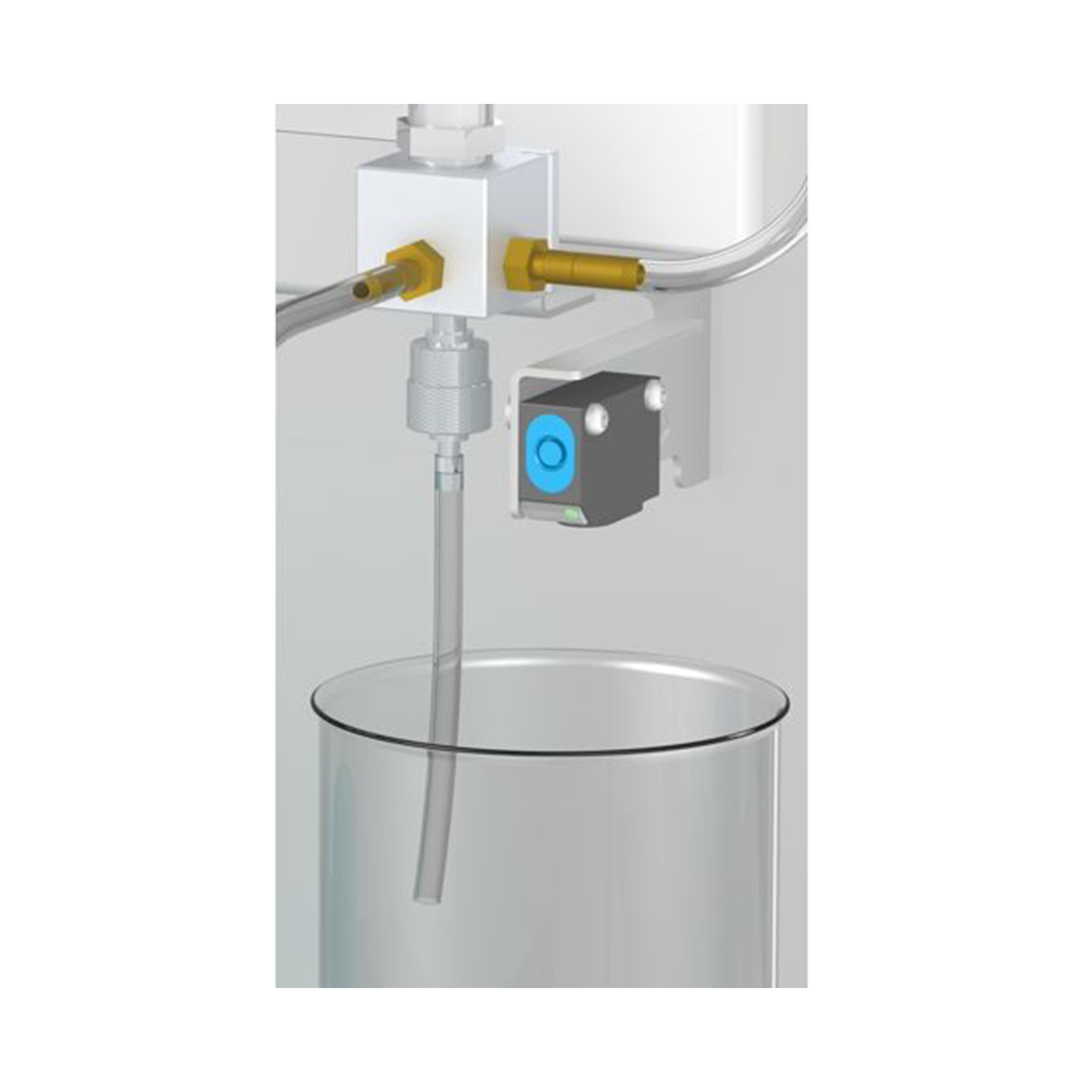

Filter Blocking Tendency Tester

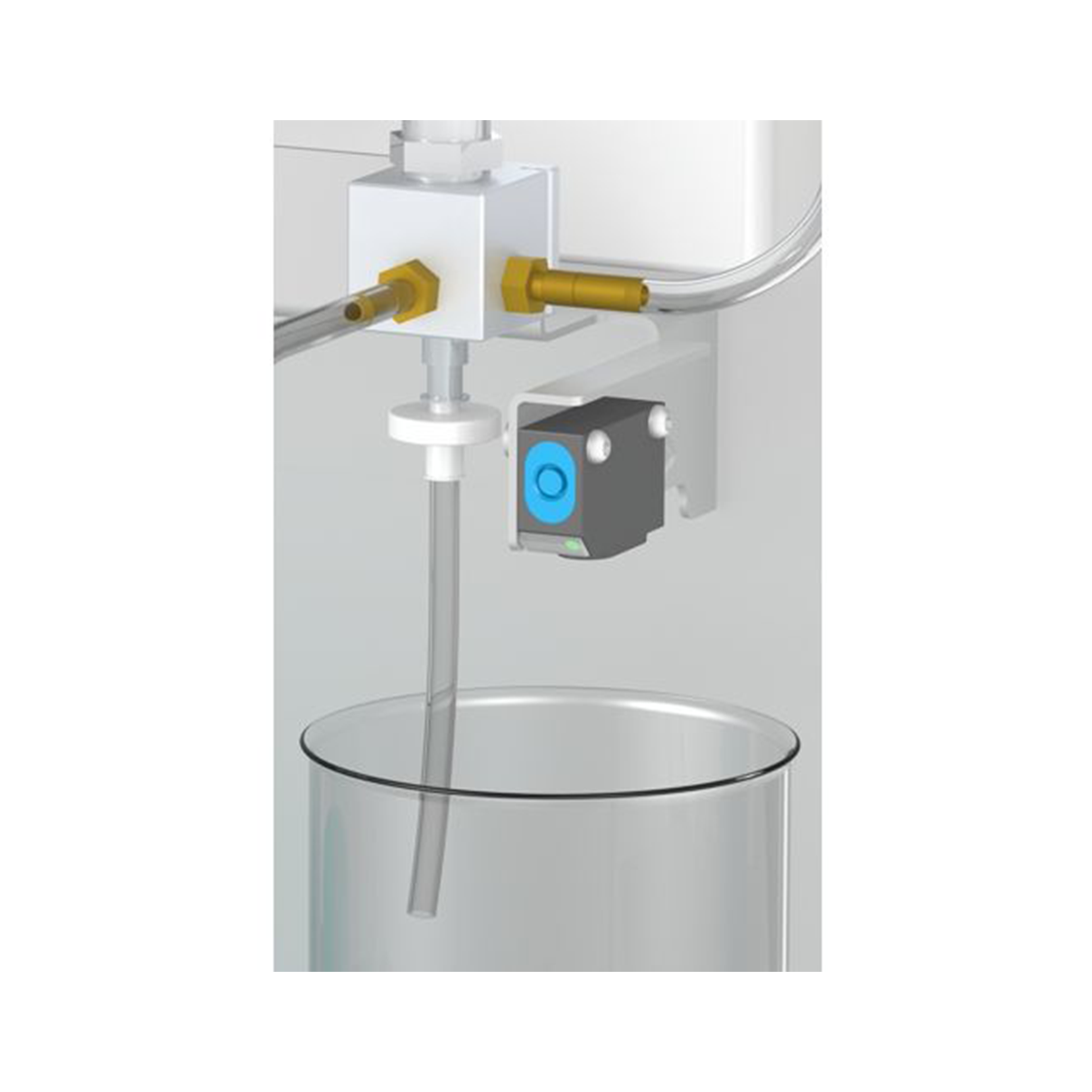

Filter Blocking Tendency Tester - Image 2

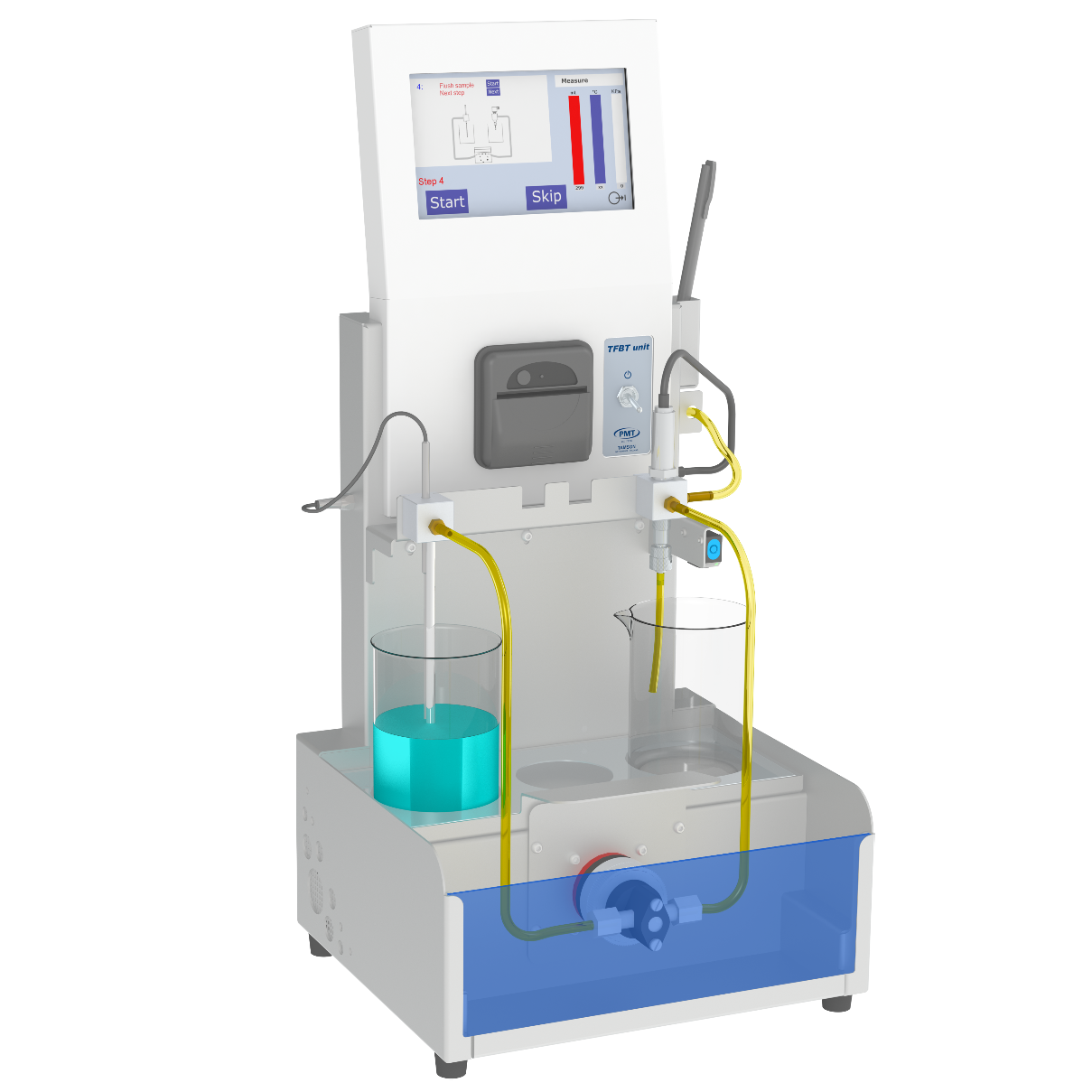

Filter Blocking Tendency Tester - Image 3

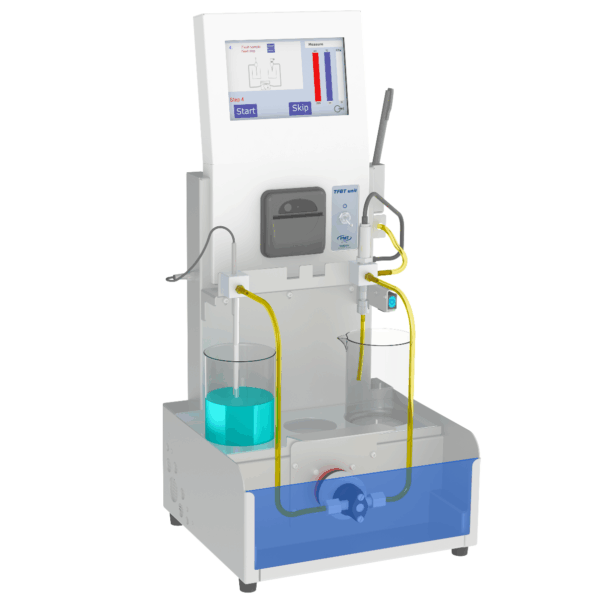

Filter Blocking Tendency Tester - Image 4

Features & Benefits

  • Complies with ASTM D2068 and IP 387 Standards
    Ensures accurate, repeatable testing of filter blocking tendency for diesel, biodiesel, kerosene, and gas turbine fuels.
  • Automated and Easy to Use
    Fully automated operation with a graphical color touchscreen that guides users step-by-step, reducing operator error.
  • Real-Time Monitoring and Results
    Continuously tracks sample flow, pressure, temperature, and fluid level with real-time graph display for complete visibility during testing.
  • Reliable, Accurate Testing
    Constant flow of 20 mL/min via precision piston pump with pulse damper ensures smooth operation and consistent results.
  • Built-In Data Management
    Integrated printer and USB port allow for immediate data export, printing, and digital record-keeping.
  • Customizable Test Parameters
    Adjustable settings for temperature, pressure, pump speed, and sensor calibration to match specific testing needs.
  • Low Maintenance Design
    Transparent tubing and accessible layout make cleaning and maintenance quick and easy.
  • Enhanced Quality Control
    Detects fuel contamination and potential filter-clogging issues early—helping prevent engine and system failures.
  • Optional PC Software Integration
    Enables data storage, trend analysis, and centralized result management for multiple tests.

Methods

  • ASTM D2068
  • IP 387

In correlation to
