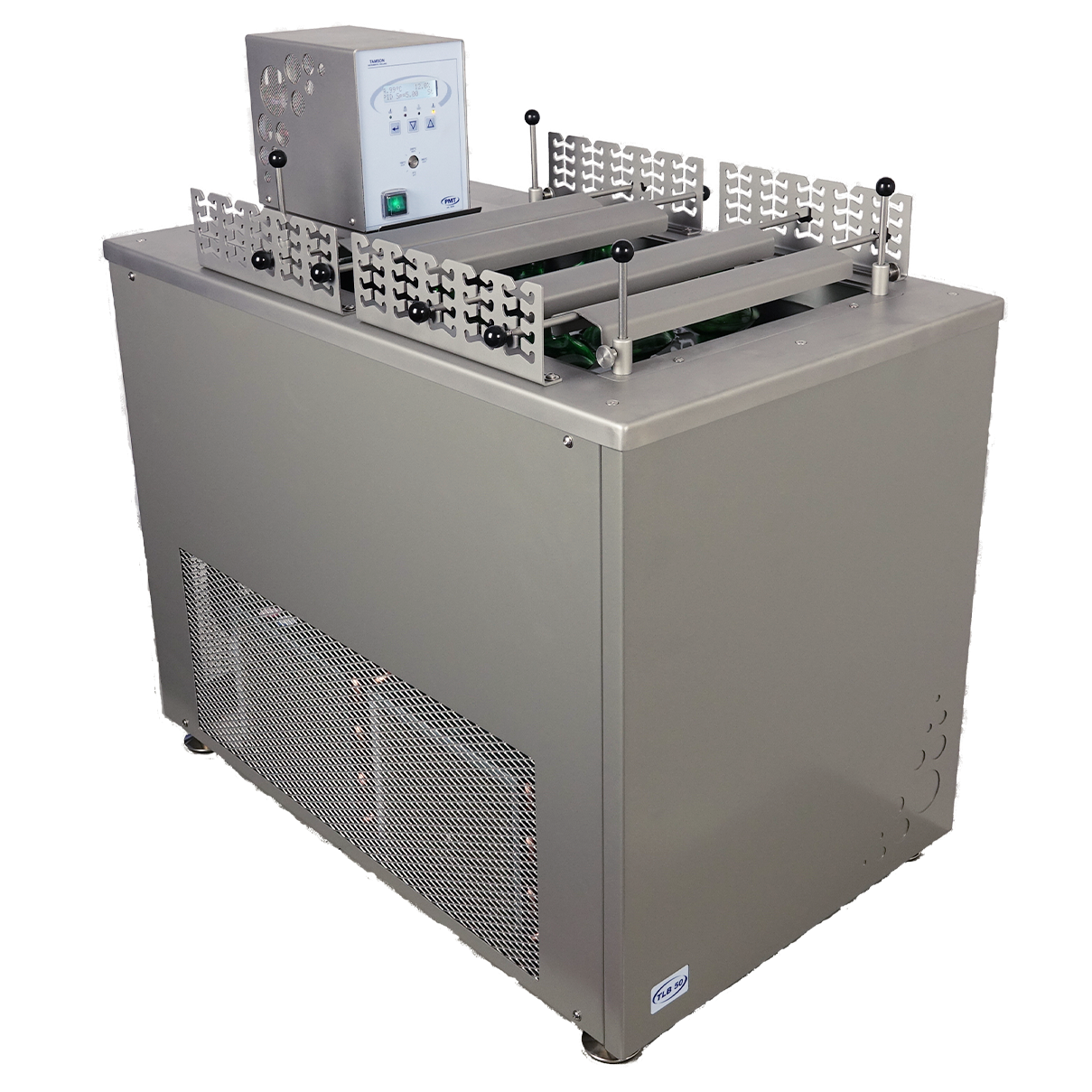

TLB50 Low-Temperature Bath for Sample Conditioning
The TLB50 is a versatile Low-temperature Bath and is ideal for precise temperature conditioning required tests like ASTM D323, ASTM D5, ASTM D7501 and ASTM D86. With an operating temperature range from -5°C to +80°C, it efficiently replaces the need for a water bath and external cooling circulator. Not only does it save valuable bench space, but it also optimizes costs due to its high cooling efficiency.
The TLB50 features a spacious bath opening, customizable levelling platforms, and an adjustable rack for various sample bottle sizes. Its primary purpose is sample conditioning, and it can optionally be equipped with a pump for external fluid circulation.
What can we do for you?
If you want more specific information regarding this product, please contact our Sales team.
We are happy to assist you.
Features & Benefits
-
- Integrated Cooling Efficiency: The TLB50 combines a benchtop bath with integrated cooling, effectively replacing the need for a separate water bath and external cooling circulator. This dual functionality not only saves valuable bench space but also reduces costs due to its high cooling efficiency.
- Wide Bath Opening and Customization Options: The TLB50 has a spacious bath opening, accommodating various sample sizes. Additionally, users can choose between fixed or split leveling platforms and adjust the rack to fit different-sized sample bottles.
- Sample Conditioning: Before analysis, most samples require precise temperature conditioning as specified in test methods. The TLB50 ensures consistent and accurate sample preparation, critical for reliable results.
- Application Examples:
- ASTM D323 Reid Vapor Pressure Test: This test needs to be performed between 0°C and 1°C, assesses vapor pressure characteristics.
- ASTM D5 Penetration Tests for Bitumen: Evaluates bitumen consistency and penetration properties.
- Long-Term Gasoline Storage: The TLB50 maintains temperatures below 10°C or 20°C for extended gasoline storage.
- ASTM D86 Distillation: Used for analyzing petroleum fractions.
- ASTM D7501 test method evaluates the suitability of biodiesel fuel blendstock (B100) for low-temperature operability.
- Energy-Saving Temperature Control: The TLB50’s continuous compressor operation ensures precise fluid temperature regulation. As it cools down to the set point, the cooling power maximizes efficiency. Above 40°C, cooling automatically switches off, conserving energy. Compared to standard instruments, the TLB50 can save up to 600 watts of electric energy.
