Twin-unit Foaming Bath

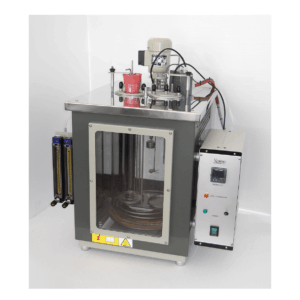

The Foaming Test Apparatus, designed to meet ASTM D892, D6082, IP 146, and ISO 6247 standards, features a robust frame with either one or two Pyrex jars and a control box.
The AD0892-500 and AD0892-505 models are equipped with variable area flowmeters. The AD0892-520 and AD0892-540 twin-unit models, featuring an 8.4″ touch-screen interface, are ideal for continuous use and high-temperature testing. These models also include electronic mass flow controllers.
The apparatus has stainless steel heaters, air circulation coils, and precise temperature control. Safety features include a transparent shield and overheating protection. Additionally, the optional Diffuser Calibration Apparatus suitable for checking cylindrical (Mott) and spherical (Norton) diffusers for maximum pore diameter and permeability.
What can we do for you?
If you want more specific information regarding this product, please contact our Sales team.
We are happy to assist you.
Features & Benefits
- Frame & Construction:
- Powder-coated steel frame for durability, supporting one (AD0892-500) or two Pyrex jars (models -505, -520, -540).
- Anodized aluminum jar covers with locking clamps and thermometer jacket for secure and accurate measurements.
- Temperature Control & Measurement:
- PT100 RTD temperature sensors ensure precise readings.
- Operating range: ambient to 100°C (models -500, -505, -520) and ambient to 160°C (model -540).
- Stainless steel heaters and electric bath stirrer with stainless steel shaft and propeller enhance durability and reliability.
- Safety transparent shield for 93.5/150°C bath and devices to prevent overheating and low water levels.
- Coils for air circulation and chiller connection to manage temperatures exceeding 20°C.
- Air Flow Management:
- AD0892-500 and -505 equipped with variable area flowmeters (0-120 ml/min, 5% f.s. precision).
- AD0892-520 and -540 feature electronic mass flow controllers (0-230 ml/min, 0.1% f.s. precision) for high accuracy.
- Control & Interface:
- AD0892-500 and -505: traditional aluminum control panel with clear indications.
- AD0892-520 and -540: 8.4” Panel PC interface for enhanced user experience with calibration, diagnostics, and data storage capabilities.
- Ethernet and USB ports on models AD0892-520 and -540 for easy connectivity.
- Easy access control box for convenient operation.
Benefits
- Durability & Reliability: Robust steel frame and stainless steel components ensure long-lasting performance.
- Precision & Control: High-precision flow control and accurate temperature measurement enhance test accuracy.
- User-Friendly Design: Easy-to-reach controls and height-adjusted top covers accommodate all users.
- Advanced Interface Options: Modern Panel PC interface on higher models offers better data handling and diagnostics.
- Versatility: Suitable for various foaming tests, including ASTM D892 and D6082 at elevated temperatures.
- Safety Features: Built-in safety measures protect users and equipment from overheating and low water levels.
