Total Sediment Tester
The Zematra Total Sediment Tester is an high-precision benchtop instrument built for the accurate quantification of insoluble substances in distillate and residual fuel oils. It ensures strict compliance with marine fuel standards ISO 8217, and core testing protocols ASTM D4870, IP 375, and ISO 10307.

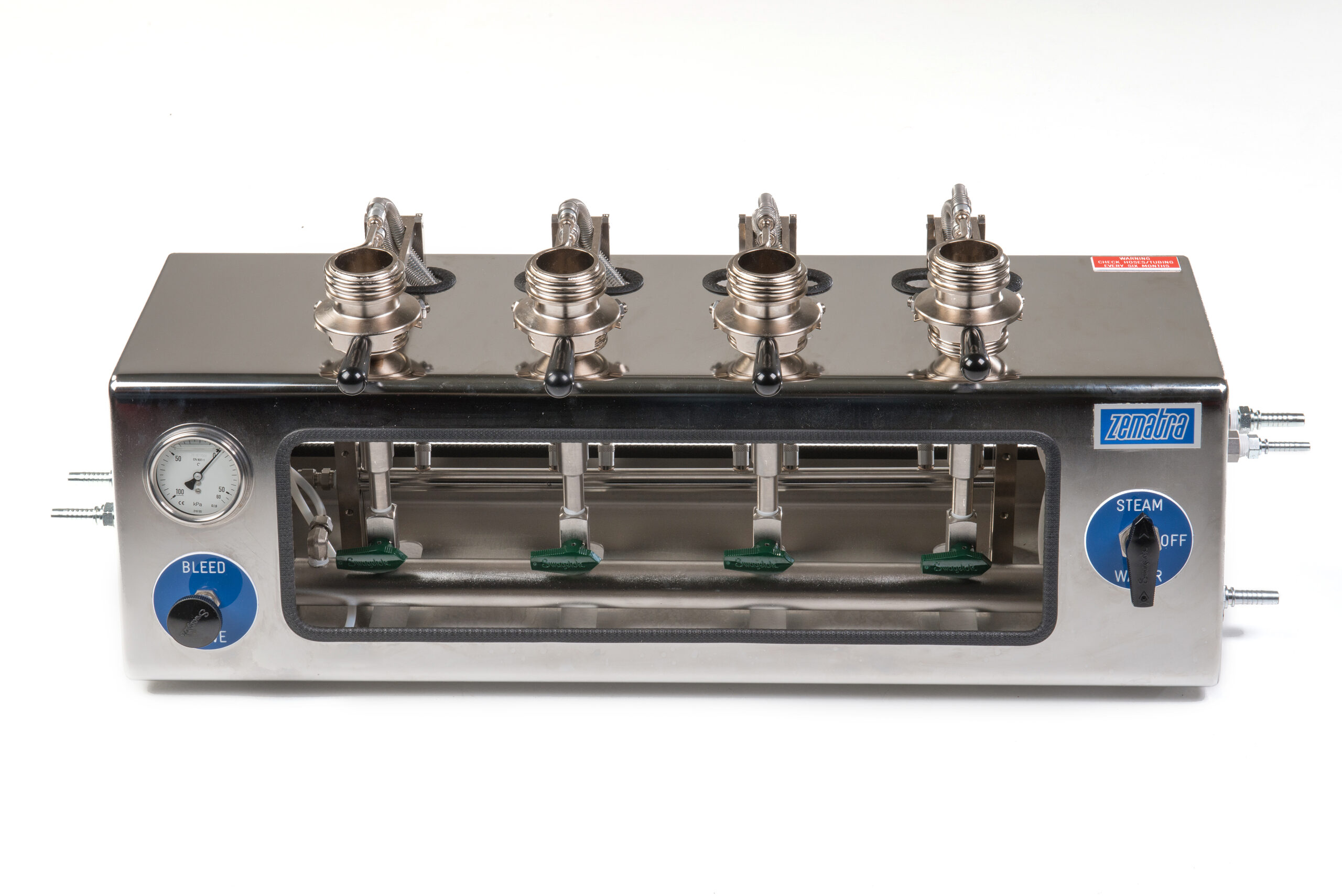

Available in 2-, 4-, or 6-position configurations, the unit features an integrated vacuum circuit, a heating/cooling system, and sintered brass discs. The tester accurately measures total sediment up to 0.50% m/m in residual fuels, accommodating viscosities up to 55 mm²/s at 100 °C.
To complete the testing setup, complementary equipment such as a vacuum pump and precision balance is available. For sample preparation, an optional Aging Bath (available in 6- or 15-position models) supports thermal treatment and accelerated aging procedures in accordance with IP 390 / Test Appendix.
What can we do for you?
If you want more specific information regarding this product, please contact our Sales team.
We are happy to assist you.
Features & Benefits
- Accurate Measurement: Measures insoluble material in distillate and residual fuel oils.
- Standards Compliance: Conforms to ASTM D4870, IP375, and ISO 10307 standards.

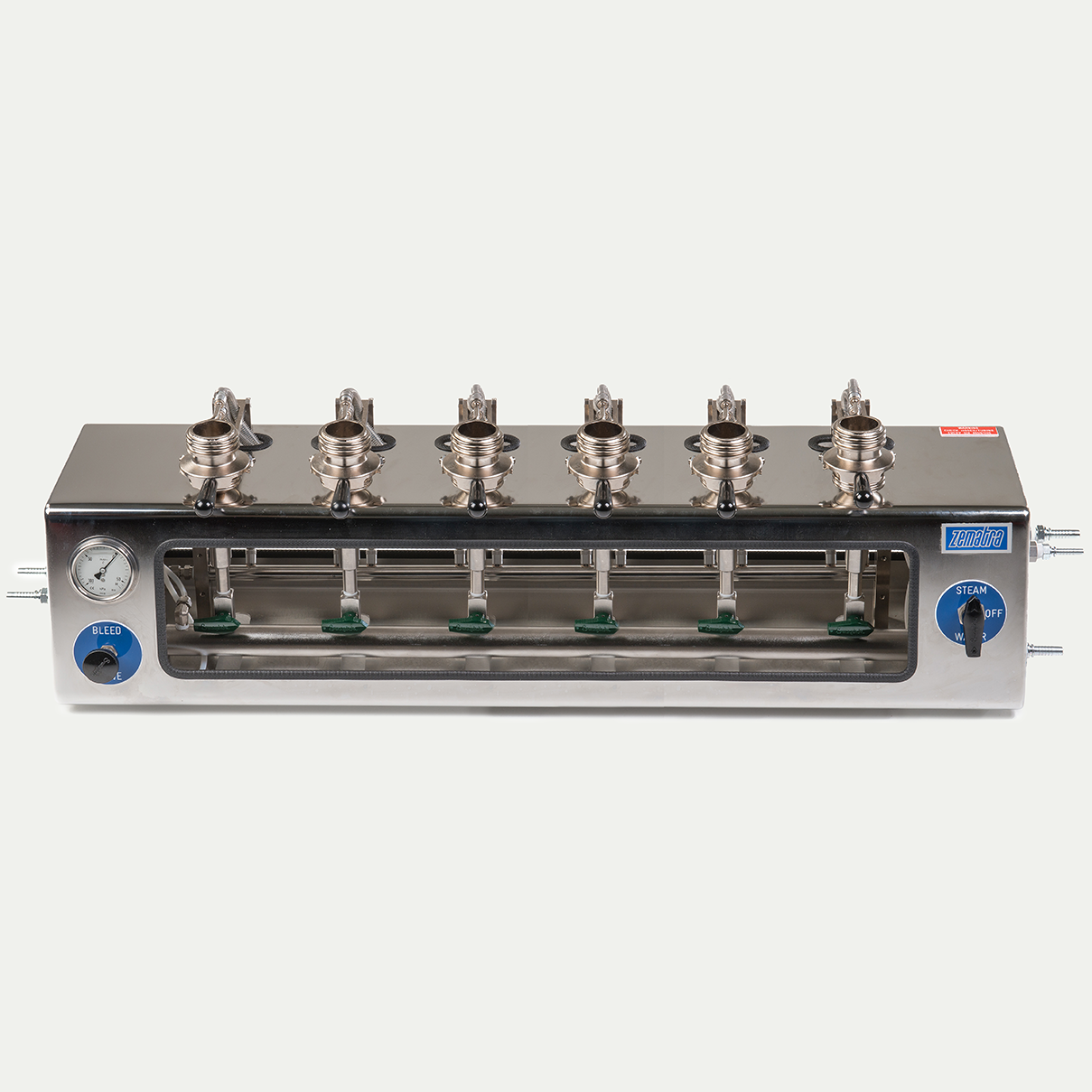

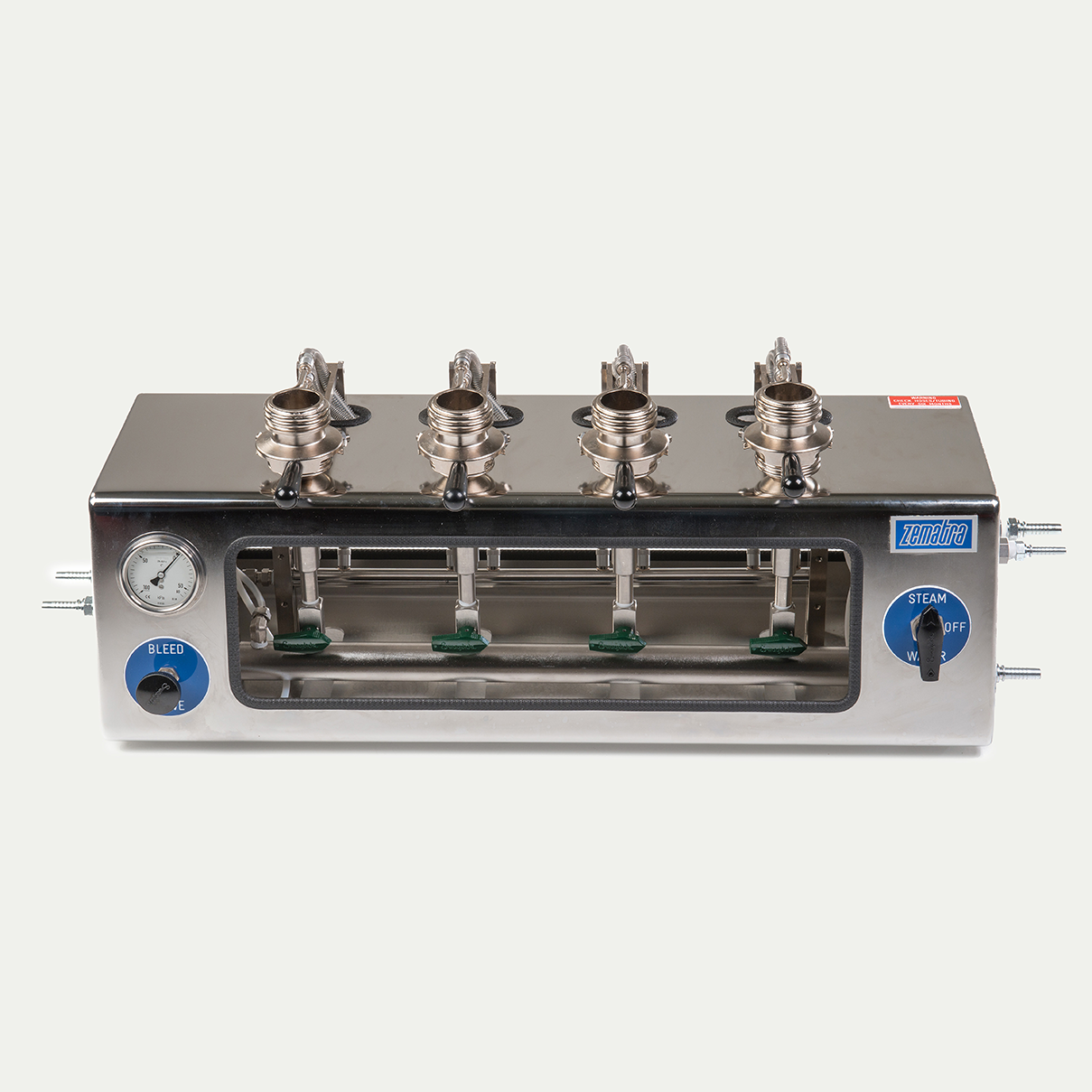

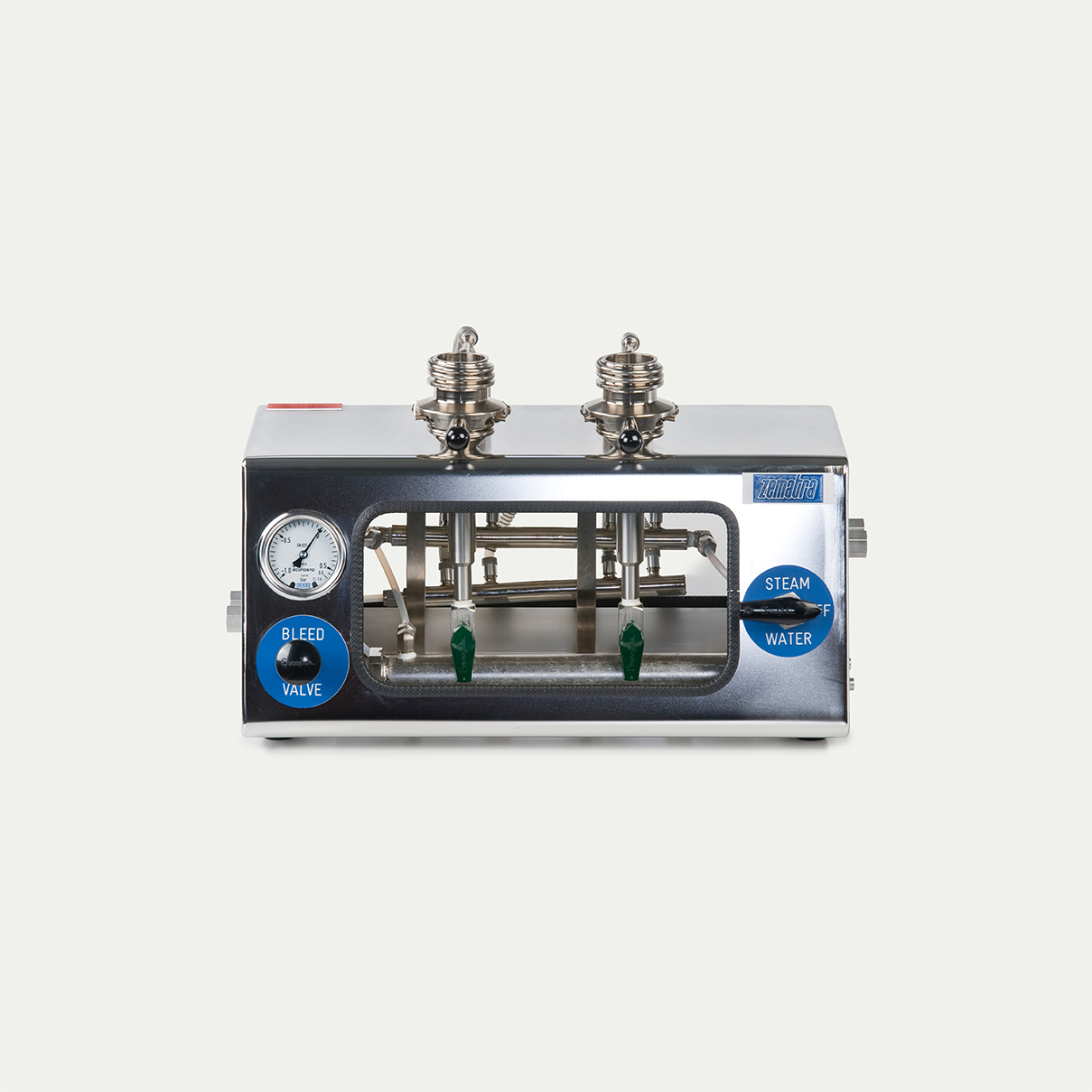

- Configurations: Available in two, four, or six-position filtration cells.
- Vacuum Circuit: Equipped with a gauge and integrated cooling/heating system for optimal performance.
- Sediment Content Detection:
- Distillate fuels: up to 0.40% m/m
- Residual fuels: up to 0.50% m/m
- Viscosity Range: Handles up to 55 mm²/s at 100 °C.
- Optional Accessories:
- Vacuum pump
- Steam generator
- Waste container
- Thermometer
- Balance
- Aging Bath Options:
- For thermal aging of samples according to the appendix of the test method
- Available in six or fifteen-position baths
- Efficiency: Enables concurrent processing of multiple samples, enhancing time savings and productivity.
