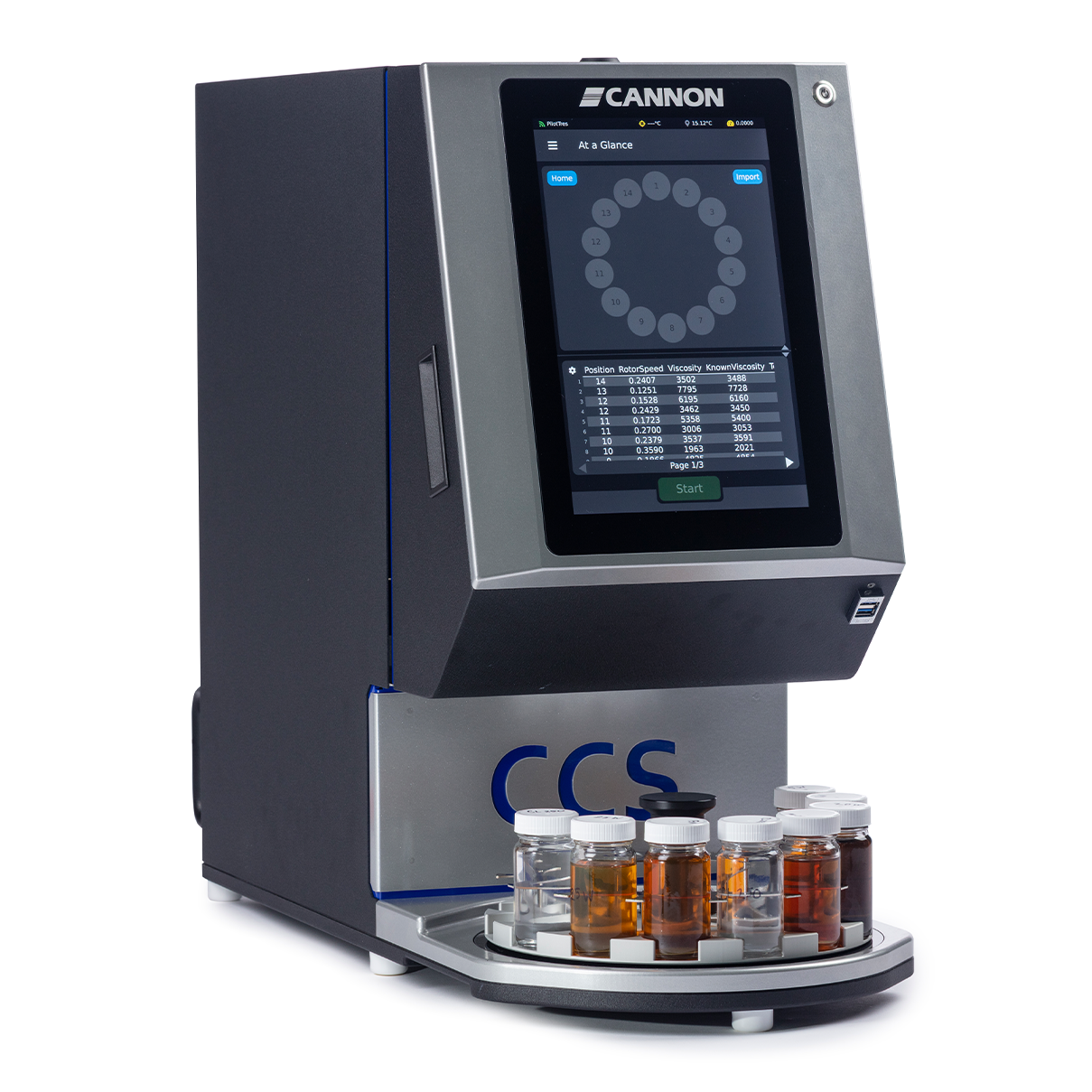

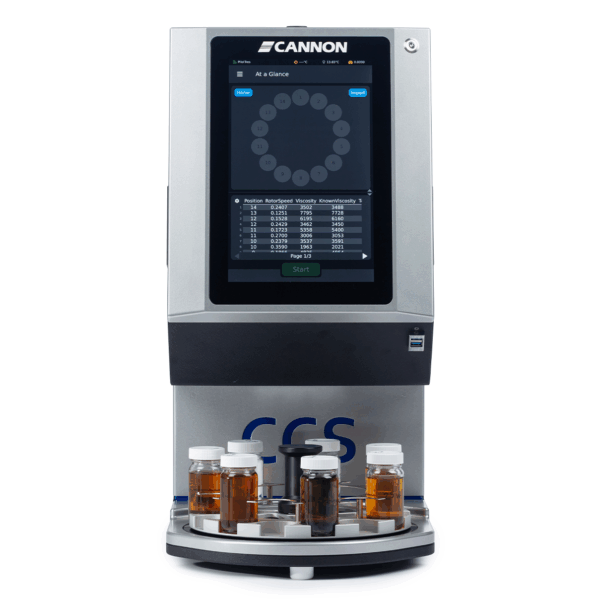

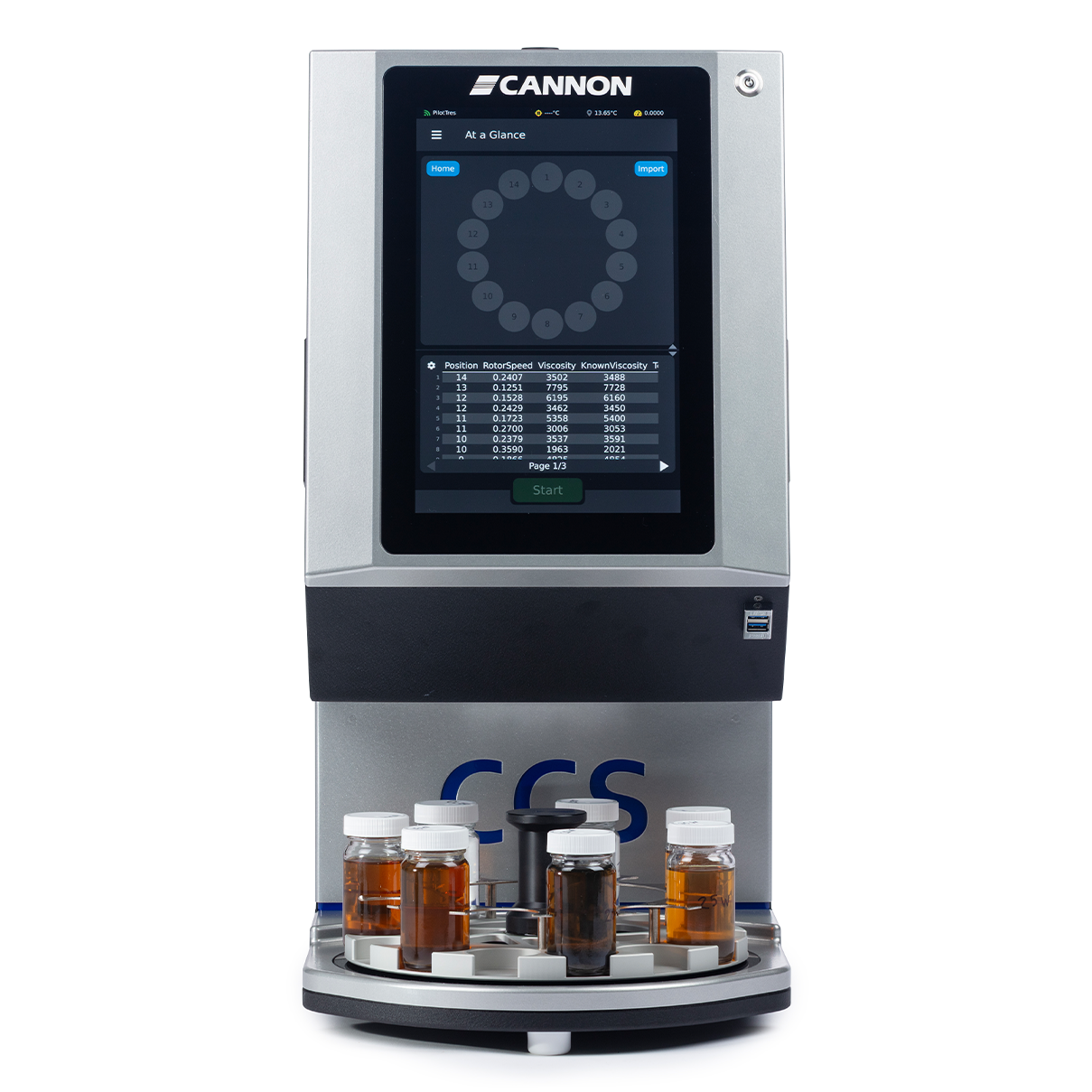

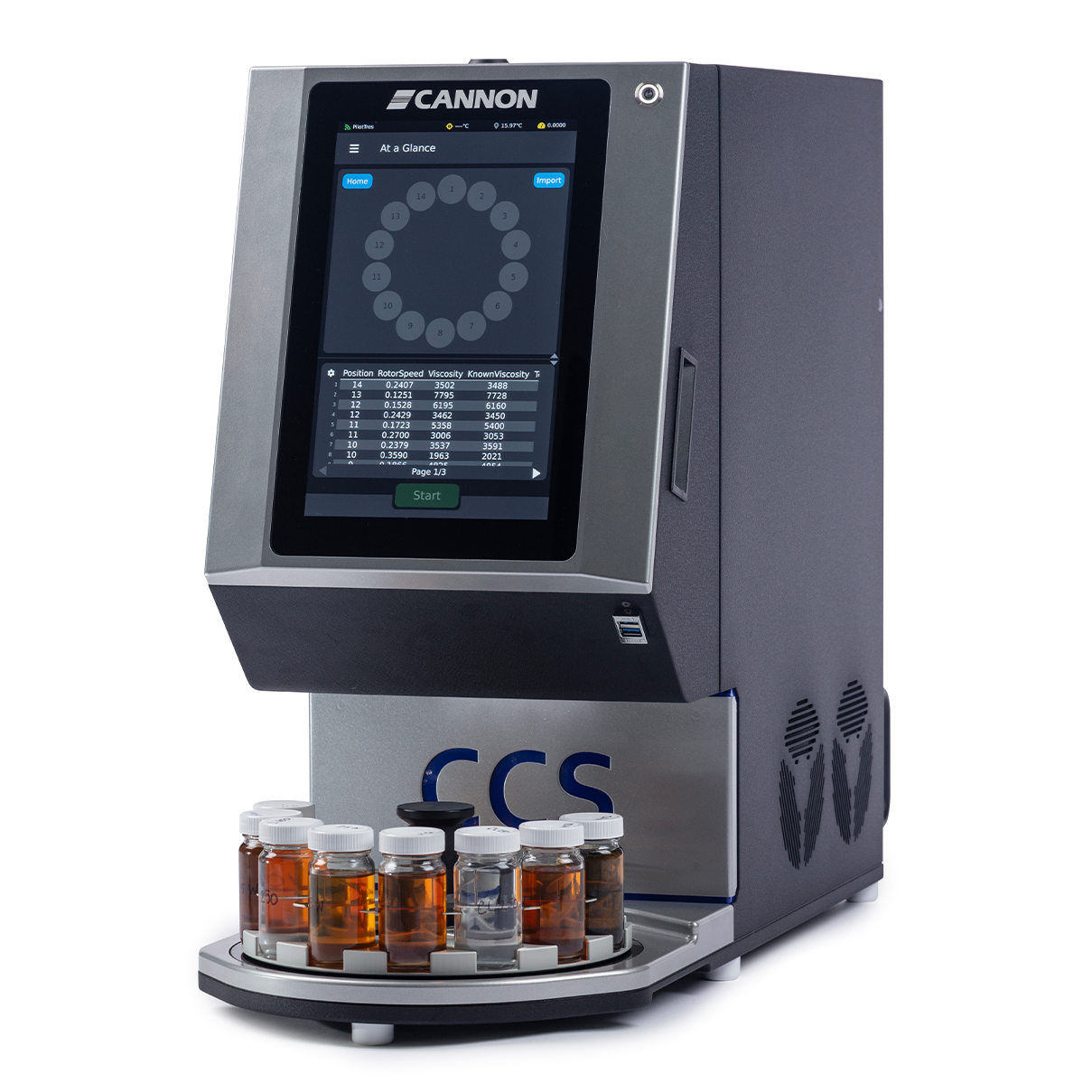

The new CCS-G6 Automated Cold-Cranking Simulator
The CANNON CCS-G6 is an advanced automated cold-cranking simulator designed to measure the apparent viscosity of engine oils within a temperature range of –40 °C to –5 °C. This state-of-the-art device features automated sample loading, solvent-free cleaning, and the capability for unattended processing of up to 14 samples. Specifically engineered for engine oils and lubricating base stocks, it adheres to ASTM D5293 and SAE J300 standards.
Key components of the system include:
- A patented thermoelectrically-cooled rotor/stator
- Vacuum system
- Injection pump

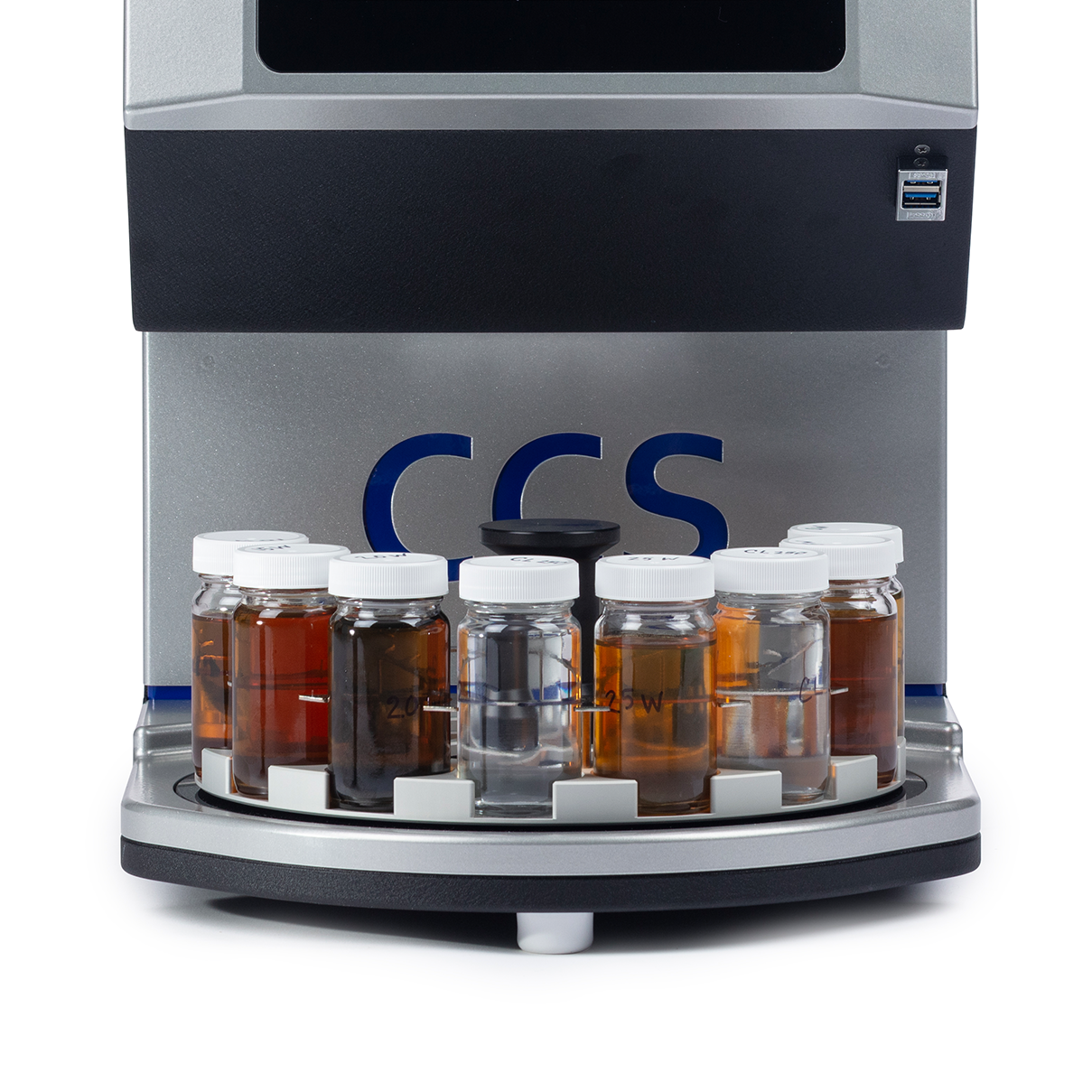

- 14-position sample carousel
- Integrated chiller
- Temperature verification kit
- Proprietary software
- Cannon CL viscosity standards
What can we do for you?
If you want more specific information regarding this product, please contact our Sales team.
We are happy to assist you.
Features & Benefits
Standards & Performance
-
Meets ASTM D5293 and SAE J300 requirements
-
Temperature range: –40 °C to –5 °C (±0.02 °C)
-
Viscosity range: 900 to 25,000 mPa·s (cP)
Efficient, Automated Operation
-
Compact Design: No external chiller, pump, or PC required
-
Unattended Testing: Processes up to 14 samples automatically
-
Solvent-Free Cleaning: Uses next sample to purge previous—no solvents needed
Advanced Calibration & Control
-
Fast Setup: Optional 4-oil calibration saves time without sacrificing accuracy
-
Self-Calibration: Users can verify and adjust temperature accuracy
-
Automated Speed Calibration: No manual tuning needed
User-Friendly & Connected
-
Touchscreen Interface: Easy setup, testing, and diagnostics; export via USB or Ethernet
-
FlowHub® Software: Connects one PC to multiple instruments
-
Data Management:
-
Export: LIMS, calibration reports, carousel setup, system backups
-
Import: Calibration and instrument data
-
