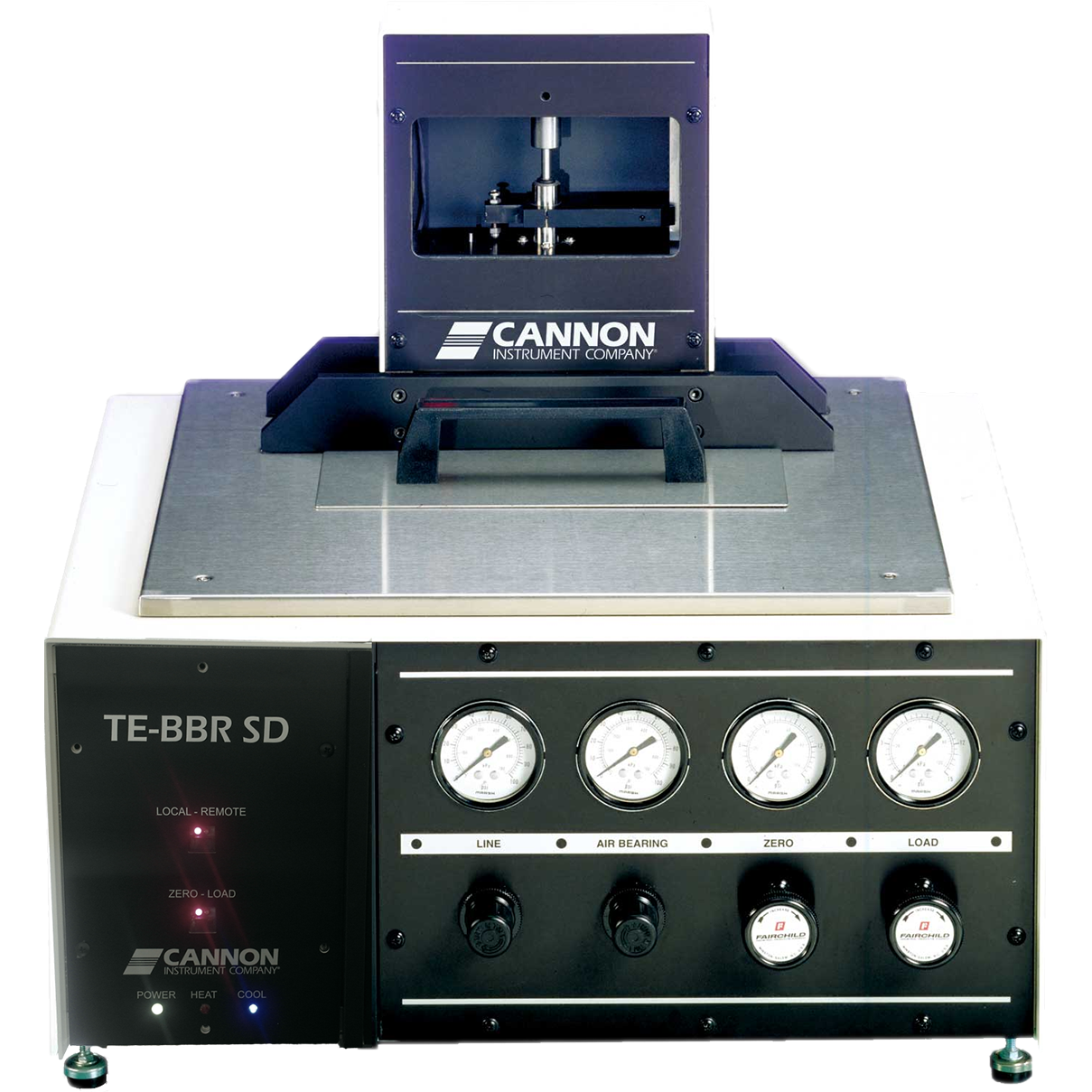

TE-BBR SD Thermoelectric Bending Beam Rheometer
The TE-BBR SD is a high-precision, thermoelectrically-cooled bending beam rheometer engineered for evaluating the flexural creep of asphalt binders. Operating from ambient to –40 °C with exceptional ±0.03 °C stability, it ensures full compliance with ASTM D6648, AASHTO T 313, and SHRP standards.
With precise temperature control, resolution down to 0.01°C, and the ability to measure beam deflection to 0.155 µm, the TE-BBR SD ensures consistent and repeatable results. The unit features pneumatic pressure regulators, automated Windows®-based software, and factory calibration from an ISO 9001 laboratory, providing reliable performance and seamless data transfer. Its compact design, with TE-cooled with solid-state Peltier elements. Requires no pressurized coolants (a separate air-water heat exchanger is included) and is environmentally friendly, making it ideal for asphalt testing labs worldwide.
What can we do for you?
If you want more specific information regarding this product, please contact our Sales team.
We are happy to assist you.
Features & Benefits
Precise, Repeatable Results
- Meets or exceeds ASTM, AASHTO, and SHRP requirement for low temperature flexural creep testing of asphalt binders including ASTM D6648 and AASHTO T 313
- Instrument sample supports feature specimen support strips 3 mm ±0.30 mm in top radius
- Temperature range: ambient to −40 °C.
- Temperature stability: ±0.03 °C with resolution to ±0.01 °C.
- Resolves specimen beam deflection to 0.155 µm (1550 Å)
- Resolves force to within 0.147 mN (0.015 g)
Reliable and Versatile Performance
- Instruments installed and in operation in asphalt testing labs throughout the world
- Performance verified through ASTM round-robin testing
- Pneumatic pressure regulators allow operator to adjust pressure on main input line, air bearing, and load shaft support
- Capable of measuring specimen beam loads from 0 g to 450 g
- Instrument provided with factory-calibration in an ISO 9001-registered laboratory
- Digital thermometer and probe included with instrument purchase, along with a one year warranty
Simple, Automated Testing
- Easy-to-use Windows®-based operational software (included) controls the entire testing process and provides a visual display of stress and strain
- Simple data transfer via USB interface
- Reports and graphs can be printed on any Windows compatible printer
Compact, self-contained unit
- TE-cooled with solid-state Peltier elements. Requires no pressurized coolants (a separate air-water heat exchanger is included) and is environmentally friendly
An integrated, self-contained bath cools using methanol or ethanol as the bath medium
