Rust preventing characteristics of inhibited mineral oil

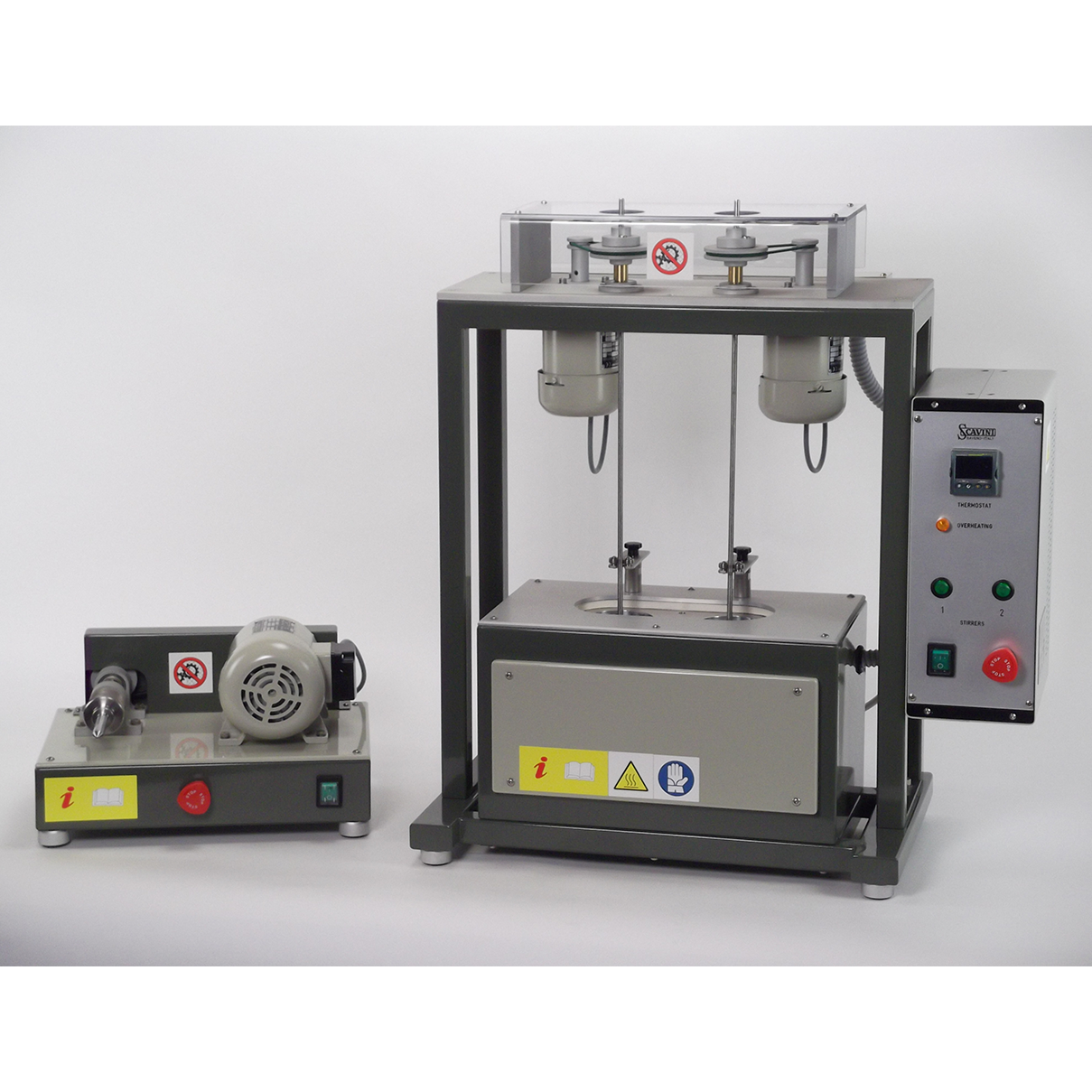

This apparatus for the determination of rust preventing characteristics of inhibited mineral oil in the presence of water, following ASTM D 665 – IP 135 – ISO 7120 standards. The benchtop case houses a dry block heater or a stainless-steel tank, along with support for the stirrer motors. Each position is equipped with an independent motor, allowing users to utilize single positions and keep the motors of unused positions turned off.
This apparatus is available with either an oil bath or an aluminum block, offering flexibility to meet different needs. The enamel finished benchtop steel case ensures durability, while the stainless-steel tank or aluminum block heater includes jackets for glassware. The electric stirrer, along with the stainless-steel shafts that can be lifted to insert the glassware, ensures efficient operation.
The microprocessor thermoregulator with PID action and built-in digital display provides precise temperature control with 0.1°C accuracy. Safety features include a device against overheating and low-level protection in the versions with an oil bath. The easy access control box contains all the electronics and features an anodized aluminum control panel with English written indications.
Please note that accessories such as glassware, covers, specimens, and specimen holders are not included. We offer different configurations, including two, four, and six-unit apparatus to fit your specific requirements.
What can we do for you?
If you want more specific information regarding this product, please contact our Sales team.
We are happy to assist you.
Features & Benefits
Design & Construction
- Benchtop steel case with enamel finish.
- Options for stainless steel tank or aluminum block heater.
Motor & Stirring System
- Independent electric stirrer motors for each position.
- Stainless steel shafts with easy lifting for glassware insertion.
Temperature Control
- Microprocessor thermoregulator with PID action.
- PT100 RTD temperature probe with 0.1°C accuracy.
- Overheating and low-level safety devices (for oil bath versions).
Control & Display
- Easy access control box with anodized aluminum panel.
- English language indications and user manual.
Electrical & Safety Compliance
- Compatible with 220 V/50 Hz, 600 W power.
- CE marked for safety compliance.
Variants & Specifications

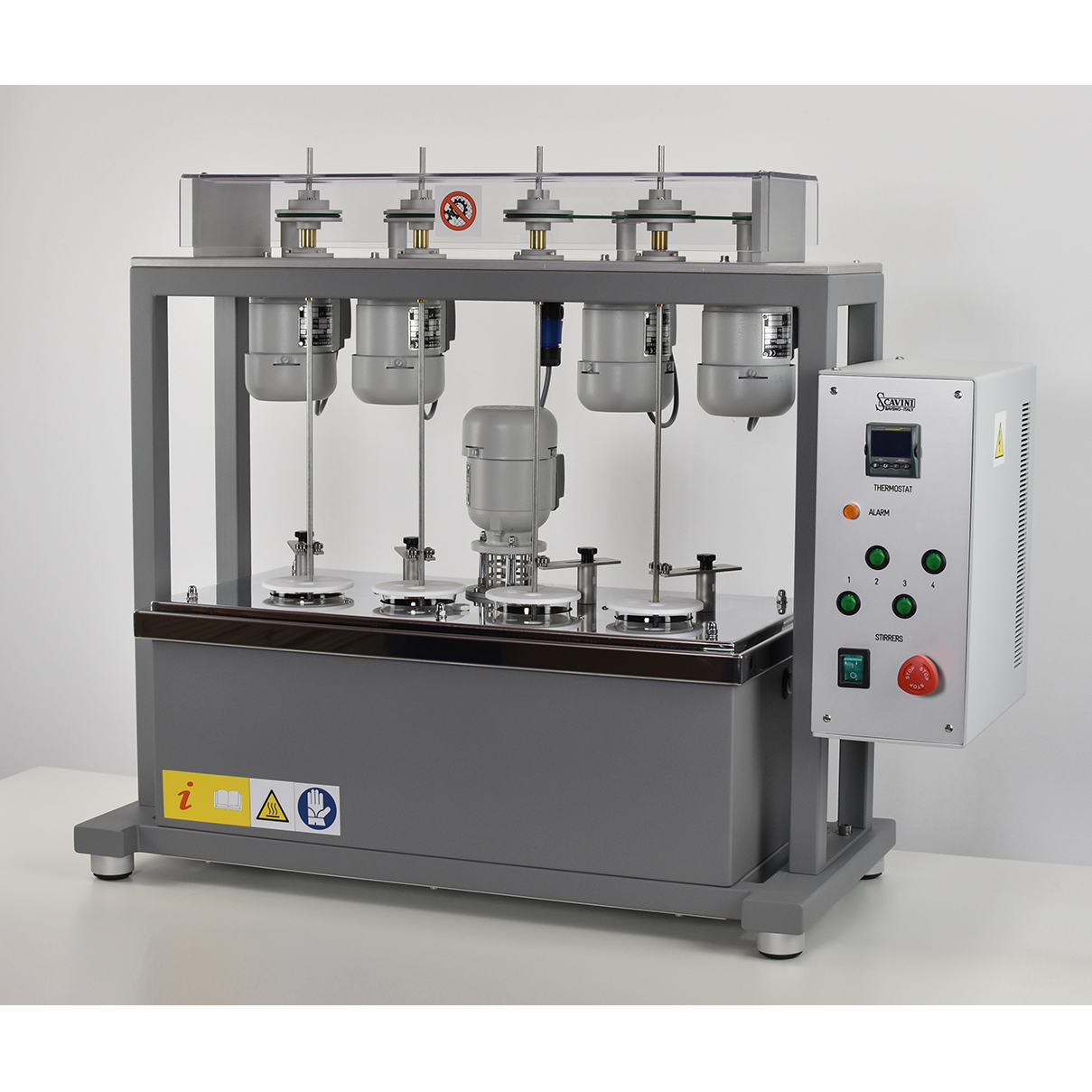

- Available in two, four, and six-unit configurations.
- Dimensions and weight vary by model:
- Two-unit (oil/aluminum): 540-640 mm x 350 mm x 720 mm, 35-50 kg.
- Four-unit (oil/aluminum): 720 mm x 350 mm x 720 mm, 55-60 kg.
- Six-unit (oil/aluminum): 900 mm x 350 mm x 720 mm, 75-80 kg.
Accessories

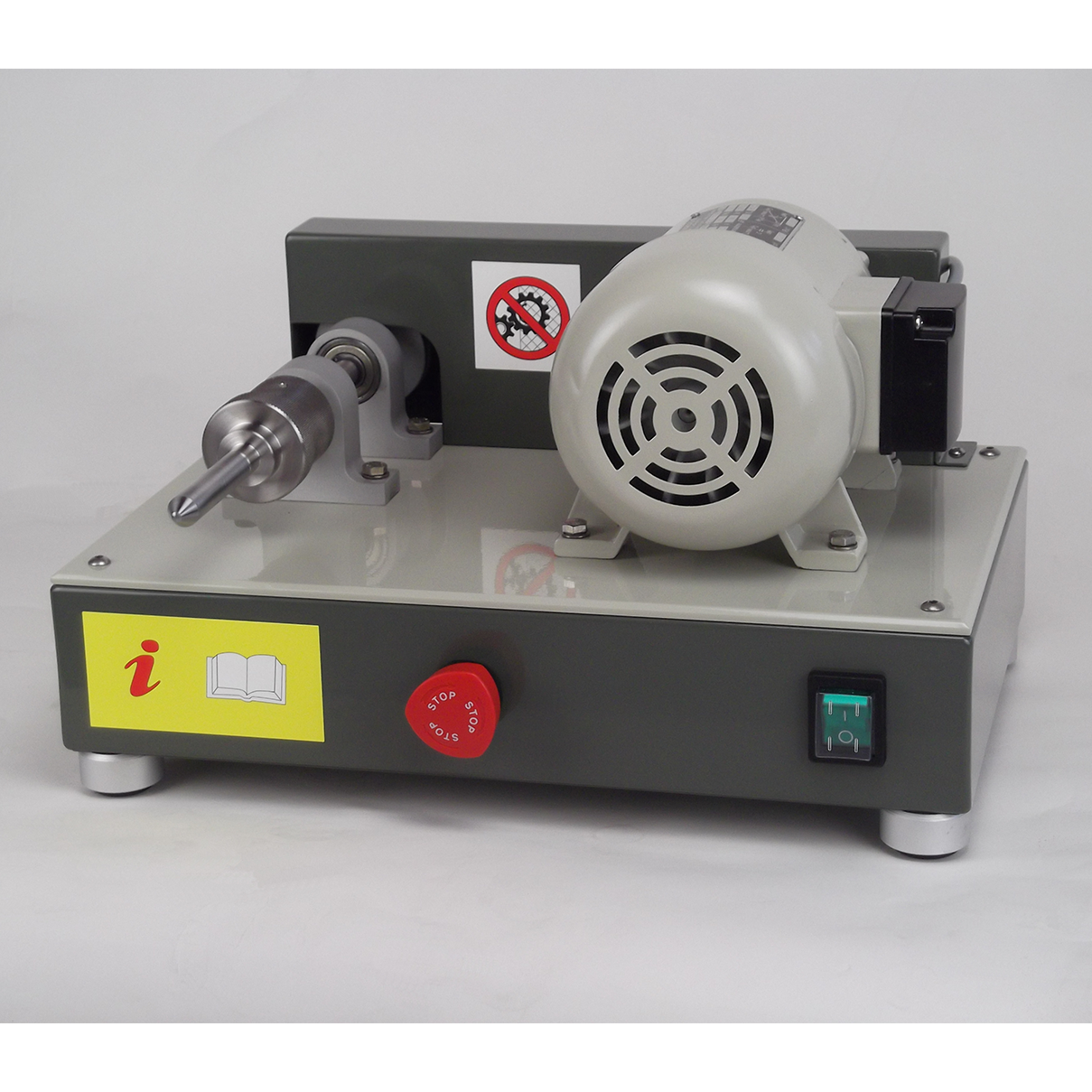

- Specimen grinding equipment.
- Blade for heavier than water fluids.
- Glassware, covers, specimens, and holders not included
