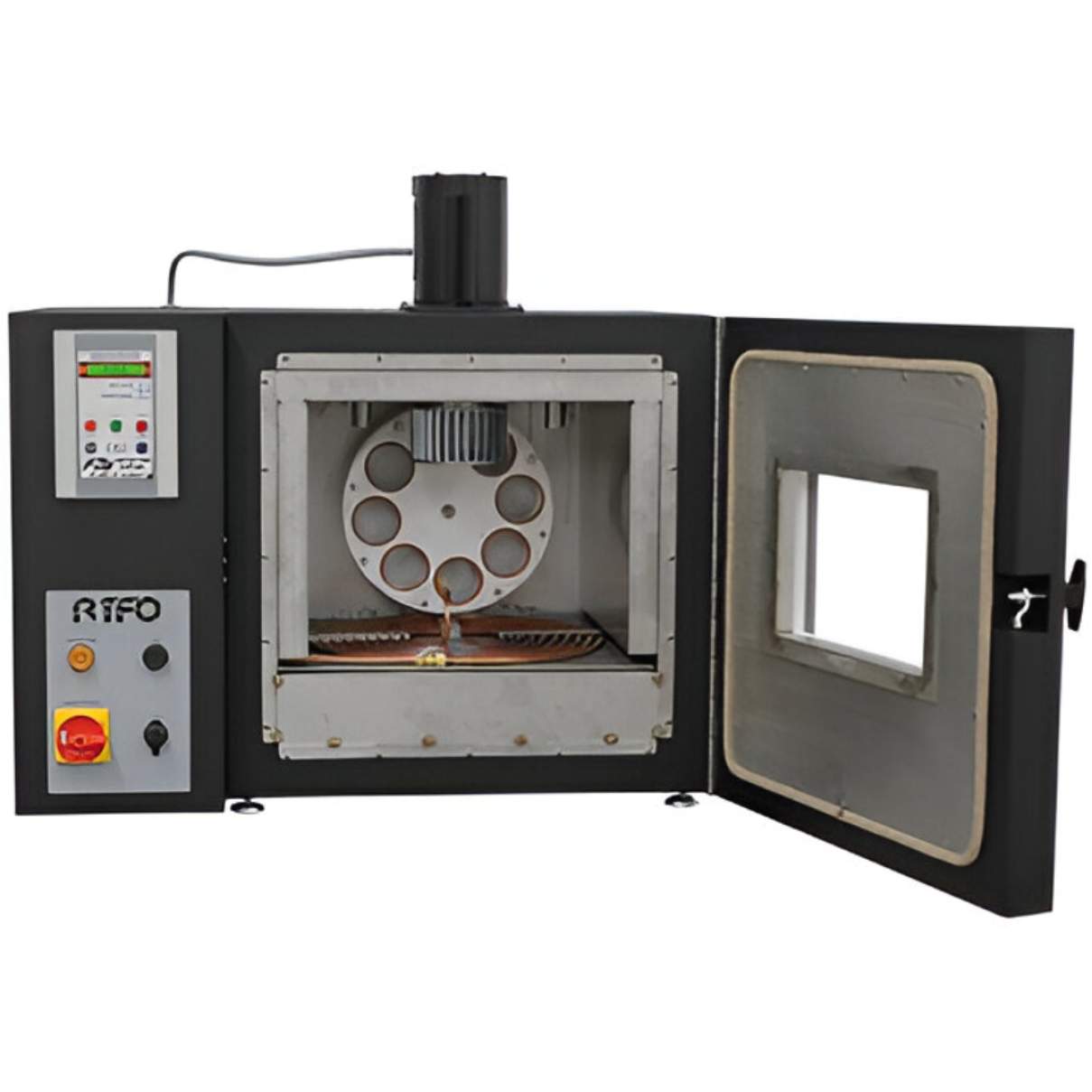

RTFO Touch – Rolling Thin Film Oven for Asphalt Binder Testing
The RTFO Touch Rolling Thin Film Oven combines decades of experience in process heating and asphalt binder testing, delivering a user-friendly, efficient solution for short-term asphalt binder aging. Compliant with ASTM D2872, AASHTO T240, EN 12607, Superpave, and California Test Method 346 standards, it features a double-walled stainless steel interior reaching up to 205°C and a durable powder-coated exterior. The intuitive touchscreen controls programmable airflow, temperature, and aging duration, while NIST-traceable sensors ensure accurate measurements. Additional features include rapid heat recovery, remote monitoring, data acquisition, and multi-language support. The RTFO Touch accommodates eight high-temperature glass bottles, offers easy maintenance with sealed bearings and removable trays, and provides reliable, repeatable results for asphalt binder testing in laboratories worldwide.
What can we do for you?
If you want more specific information regarding this product, please contact our Sales team.
We are happy to assist you.
Features & Benefits
- CE certified, durable construction: double-walled stainless steel interior (up to 205°C) and black powder-coated exterior.
- User-friendly touchscreen interface with multi-language support (English, German, Spanish, French, Italian, Chinese, Arabic).
- High accuracy and traceability: NIST traceable platinum RTD and digital flow meter.
- Fast heat recovery (~5 minutes) after loading specimens.
- Programmable controls for airflow, temperature, and aging duration.
- Real-time data acquisition with USB port for downloads and software updates.
- Remote monitoring capability and end-of-process visual & audible alarms.
- Specimen capacity: 8 high-temperature glass bottles.
- Precise speed control: 15 ± 0.05 RPM.
- Easy maintenance: sealed high-temp bearings outside heat zone, silicone rings for safe bottle installation, accessible bottom tray and heating elements.
- Air requirements: clean, dry air at 60–150 psi.
- Power: 208–240 VAC, 1 phase, 50/60 Hz, 10 A, Dimensions: 86.4 cm W × 71.8 cm D × 81.3 cm H, Weight: 122.5 kg
