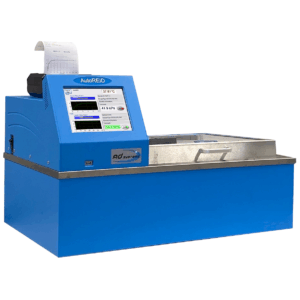

Reid Vapor Pressure Apparatus
The ASTM D 323 Reid Vapor Pressure Apparatus is designed to measure the vapor pressure of gasoline. It utilizes a floor-mounted water bath that can support three cylinders.
The apparatus is constructed with an enamel-finished steel case and a stainless steel water bath that features a drain cock. It also includes an electric stirrer with a stainless steel shaft. The thermoregulator, controlled by a microprocessor, ensures precise temperature control with an accuracy of ±0.1°C, ranging from ambient to 50°C. To prevent overheating and low water levels, the apparatus is equipped with a safety device and a stainless steel heater. It is CE marked and operates at 220V/50Hz, consuming 1000W of power. The dimensions of the apparatus are 500 x 300 x 850 mm, with a weight of 50 kg. An English manual is provided, and accessories and calibration tools can be purchased separately.
What can we do for you?
If you want more specific information regarding this product, please contact our Sales team.
We are happy to assist you.
Features & Benefits
Construction and Design
- Floor-mounted water bath with support for three vapor pressure cylinders.
- Enamel finished steel case.
- Stainless steel water bath with drain cock.
Temperature Control
- Electric stirrer with stainless steel shaft.
- Microprocessor-controlled electronic temperature control.
- Digital display with 0.1°C accuracy and PT100 RTD probe.
- Regulation accuracy of ±0.1°C, with a working range from ambient to 50°C.
Safety and Operation
- Stainless steel heater.
- Safety device for overheating and low water level.
- Easy access control box with anodized aluminum panel and English indications.
- Comes with an English user manual.
Power and Dimensions
- Compatible with 220 V/50 Hz, 1000 W power consumption.
- Dimensions: 500 x 300 x 850 mm; Weight: 50 kg.
Accessories
- Various Reid vapor pressure vessels.
- Manometer with Bourdon type spring gauges (different ranges and accuracies).
- Gage calibration device.
- Digital gage with multiple units (bar, psi, kg/cm², kPa).
- PT100 simulator and official certificate.
