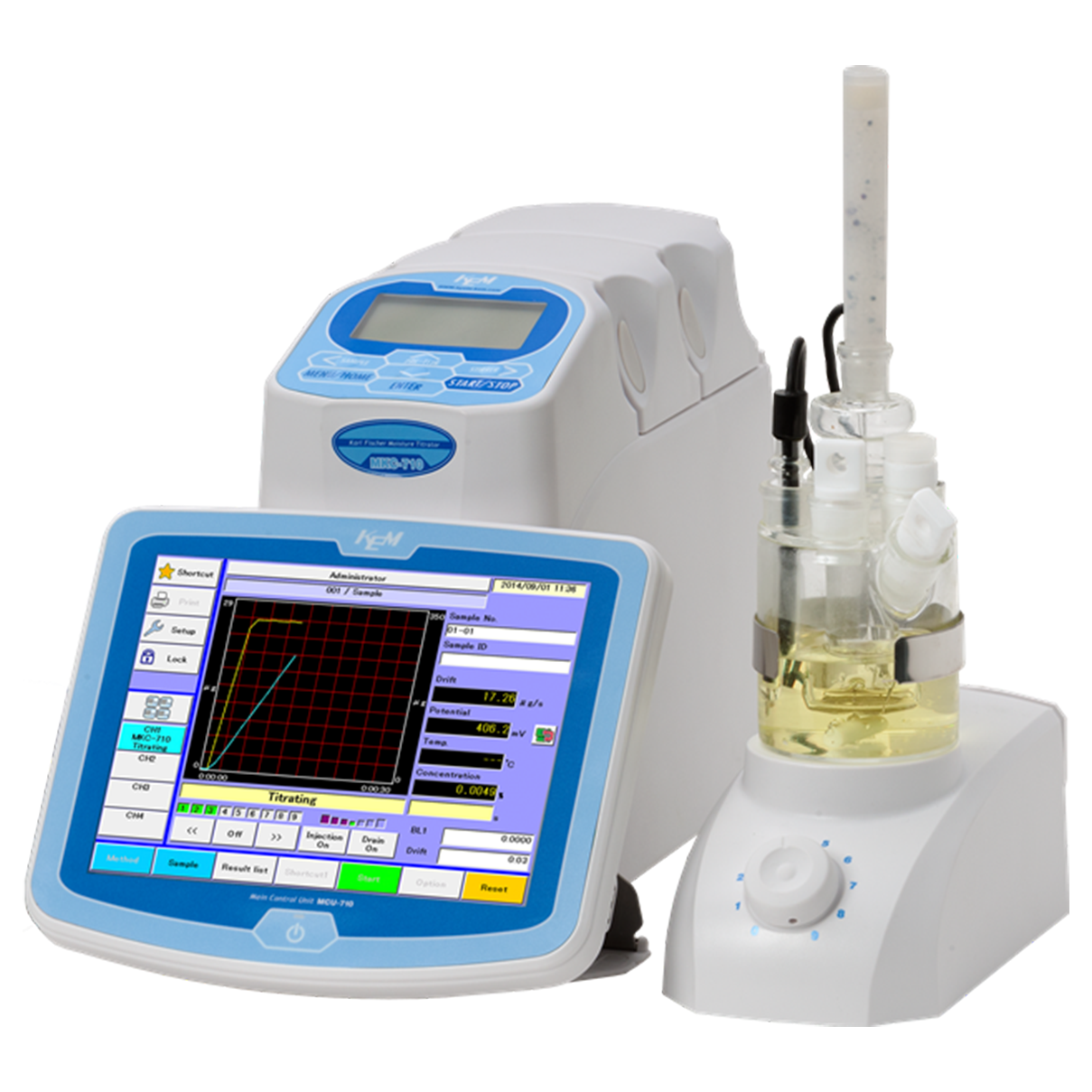

MKC-710S Karl Fischer Moisture Titrator (Coulometric titration)
The Karl Fischer Moisture Titrator MKC-710S offers precise and efficient moisture analysis via coulometric titration. Its 8.4-inch color TFT-LCD touch panel simplifies operation, while a 30% reduction in power consumption enhances energy efficiency. Proprietary technology enables rapid measurements, cutting pre-titration times significantly, and results can be saved as PDF files on a USB for eco-friendliness.
The unit features a replaceable ceramic diaphragm for easy maintenance and supports compliance with international standards, including European Pharmacopoeia. Additional capabilities include multi-language display, data storage for 500 samples, and GLP compliance. It’s designed for versatility with an optional evaporator and multi-sample changer, meeting diverse testing needs across industries like pharmaceuticals, petrochemicals, and plastics.
What can we do for you?
If you want more specific information regarding this product, please contact our Sales team.
We are happy to assist you.
Features & Benefits
User Interface and Accessibility
- Large Color Touchscreen: 8.4-inch TFT-LCD touch panel for easy operation and multilingual support (8 languages).
- Data Storage & Export: Saves up to 500 samples and outputs results as PDF files to USB, reducing paper use.
- User Permissions: Two user levels for enhanced security and compliance.
Performance and Efficiency
- Fast Measurements: Proprietary technology achieves high electrolytic speed (up to 2.6 mg H₂O/min), reducing pre-titration and sample measurement times.
- Energy Efficiency: Power consumption reduced by 30% compared to conventional models.
- High Precision: Relative standard deviation <0.3% with a resolution of 0.1 μg.
Maintenance and Adaptability
- Replaceable Diaphragm: Ceramic diaphragm in the titration cell can be easily replaced, especially for oil-based samples.
- Modular Design: Compatible with multiple evaporators and accessories for varied sample types (oils, plastics, powders, ores).
Compliance and Standards
- Pharmacopoeia Compliance: Meets European, Japanese, and U.S. Pharmacopeia standards for water determination.
- ISO & ASTM Standards: Conforms to key international standards for water content analysis across industries.
Extensibility and Software Integration
- Advanced Software: Direct PC data download via SOFT-CAP for further processing.
- Multiple I/O Options: Includes RS-232C and USB ports for printers, keyboards, and other peripherals.
Specifications
- Wide Measurement Range: Water content detection from 1 μg to 300 mg.
- Environmental Adaptability: Operates in 5–35°C and ≤85% RH conditions.
- Compact Design: Modular units with manageable dimensions and weights.
Optional Accessories
- Evaporators: Options for high-temperature samples, oils, and plastics (up to 1000°C).
- Sample Changer: Automates up to 24 continuous measurements with customizable heating settings.
Eco-Friendly Features
- Paperless Operation: PDF result storage.
- Reagent Life Management: Alerts for reagent replacement to minimize waste.
