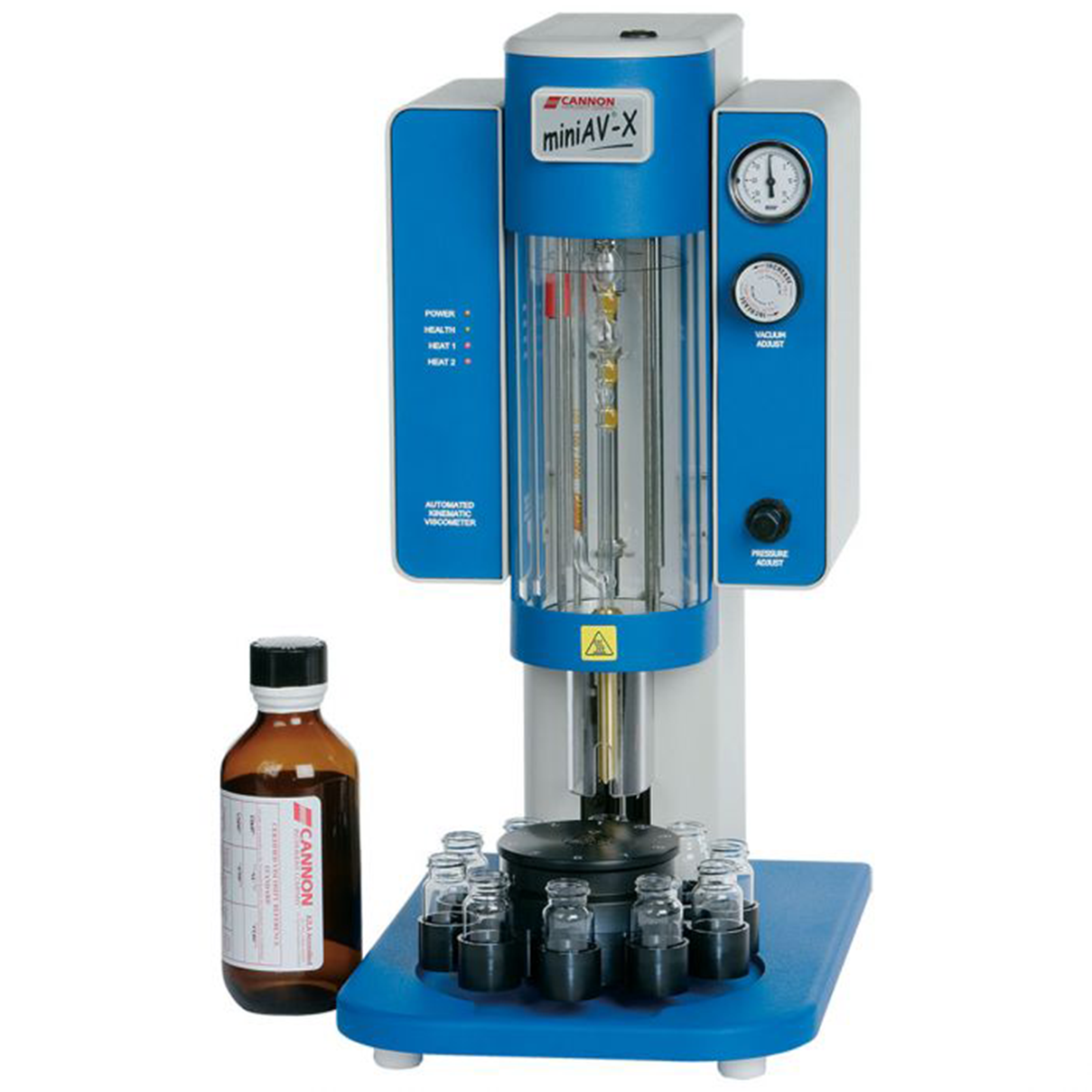

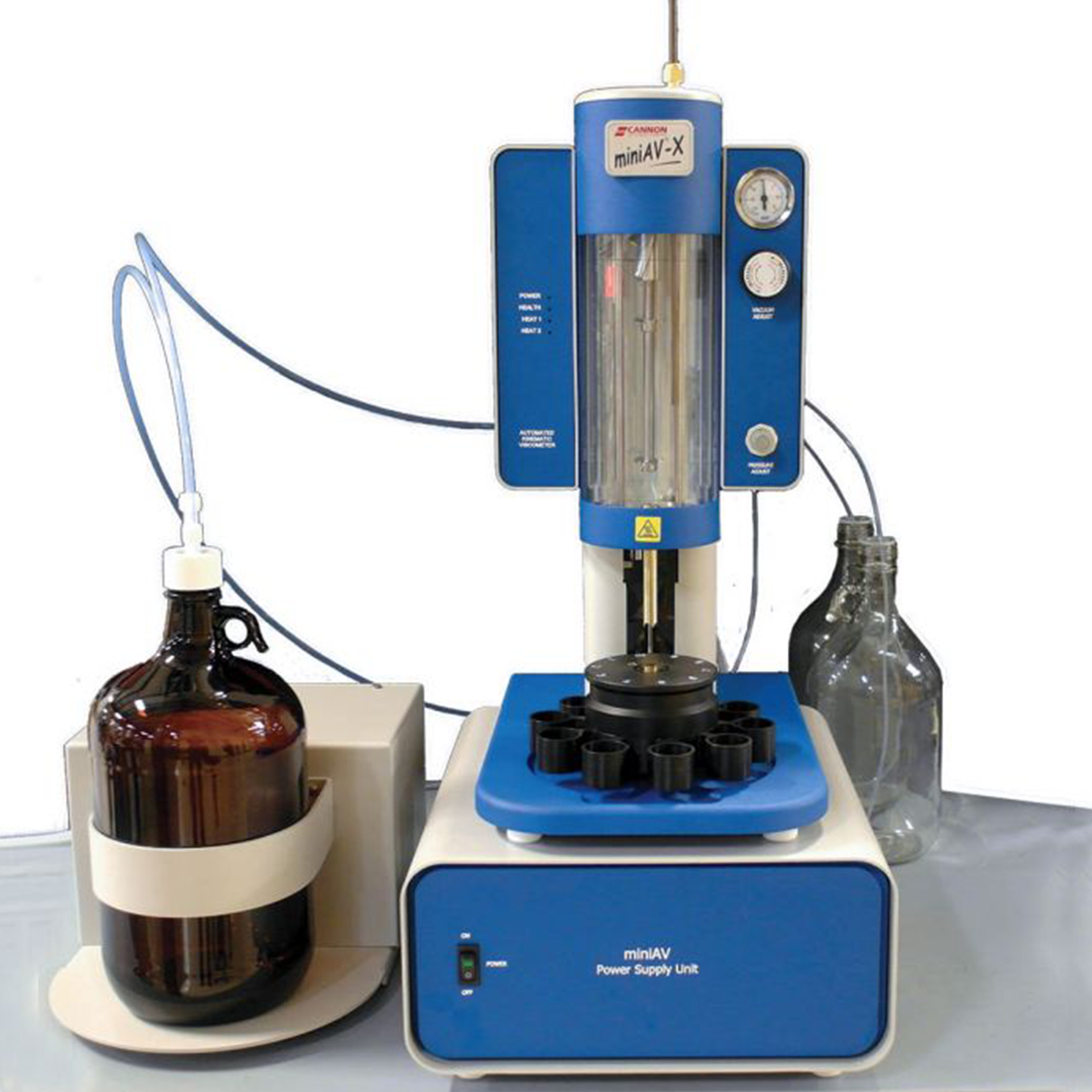

MiniAV-X Single Bath Kinematic Viscometer
The CANNON miniAV-X is a fully automated, single-bath, benchtop viscometer with a 10-position sample handler for unattended D445 processing. The Ubbelohde-style tube covers a 100-fold viscosity range between 0.5 mm²/s (cSt) and 6,000 mm²/s (cSt) from 15 °C to 100 °C (with available TE cooler).
The miniAV-X is a versatile solution for a wide range of applications, including formulated oil analysis, hydraulic oil analysis, additive analysis, marine fuel testing, base stock analysis, light and heavy fuel testing, waxes/paraffin, crude oil testing, and glycols.
Its advanced features, such as the VISCPRO® software for viscosity index calculation, simplified maintenance, reduced consumable costs, and flexible configuration, make the miniAV-X an ideal choice for reliable and cost-effective viscosity testing.
What can we do for you?
If you want more specific information regarding this product, please contact our Sales team.
We are happy to assist you.
Features & Benefits
D445 precision in a compact, robust design
- Temperature range: ambient to 100 °C (15 °C to 100 °C with available TE cooler)
- Viscosity range: 0.5 mm²/s (cSt) to 6,000 mm²/s (cSt) in 100-fold increments
- Fits in roughly the same benchtop area as an analytical balance
- Optional Peltier cooling is environmentally friendly and requires no external refrigeration
- A well tested CANNON viscometer platform offers reliability and dependable support
Fully automated benchtop testing

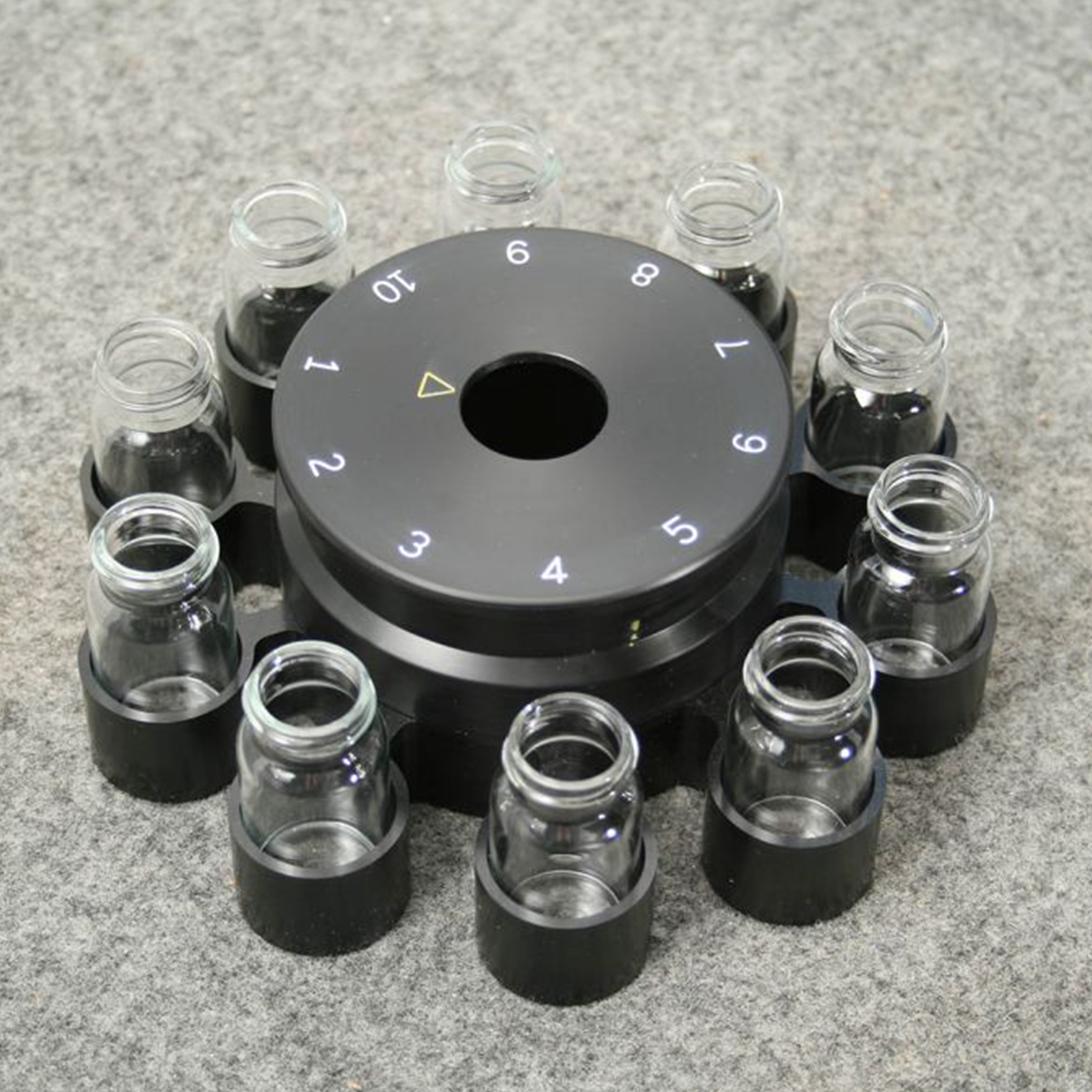

- A fully accessible 10-position sample handler ensures reliable,unattended processing of up to 12 determinations/hour
- Automation provides an alternative to labor-intensive manual testing and reduces operator to operator variability
- VISCPRO® PC software enables one PC to manage and control up to four instruments
- User-configurable reports may be viewed, printed, saved and exported
Reduced consumable costs
- ASTM D446/ISO 3105 Ubbelohde-style tube reduces solvent usage and disposal costs by 50%
- Automated vial washing & drying enables reuse and reduces vial consumption
Simplified maintenance & test versatility
- Modular bath for easy maintenance access

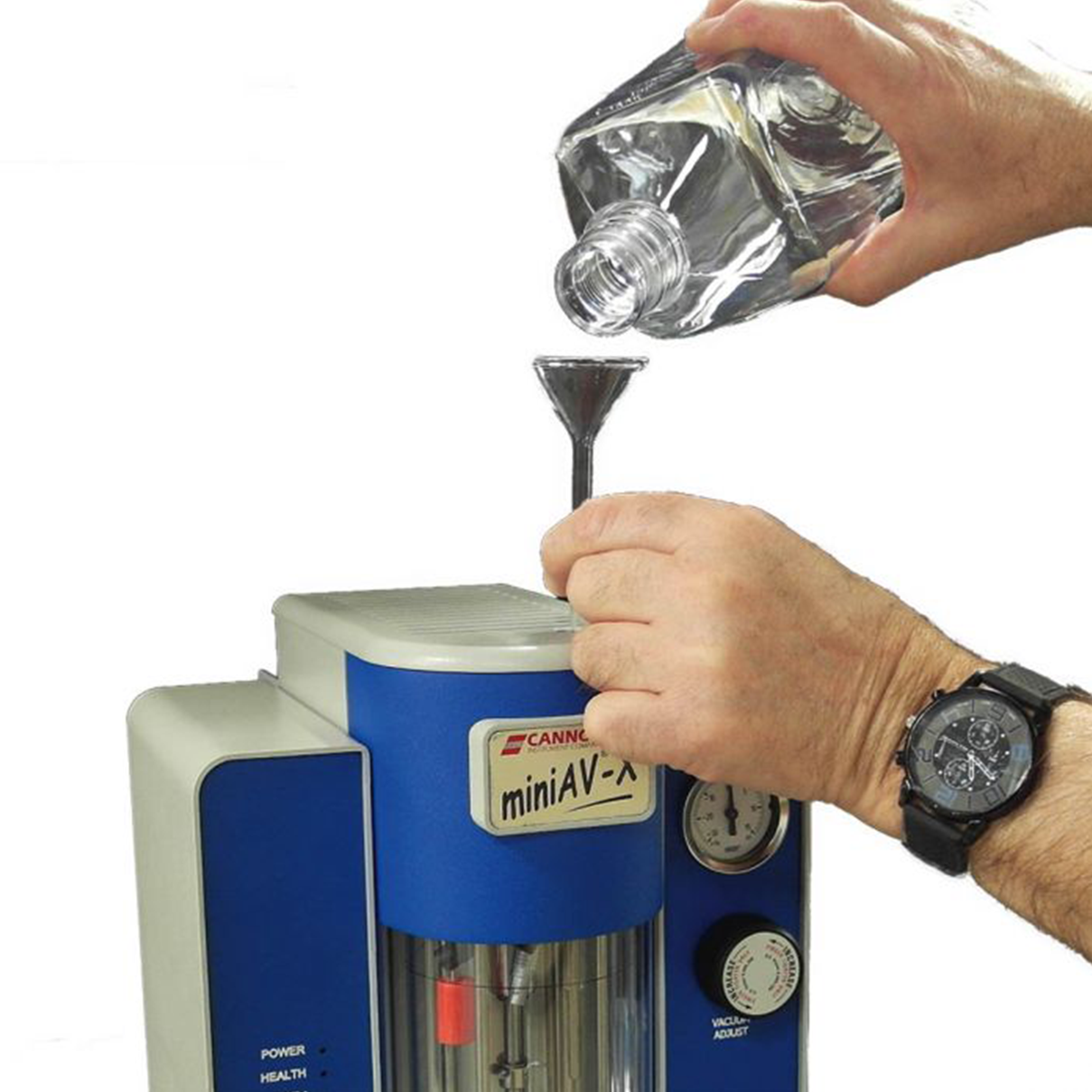

- Operators physically replace tubes in minutes,eliminating the need for related service calls
- Single-point temperature calibration avoids tube recalibration costs and maximizes flexibility
- Instrument includes standard dual solvent input
