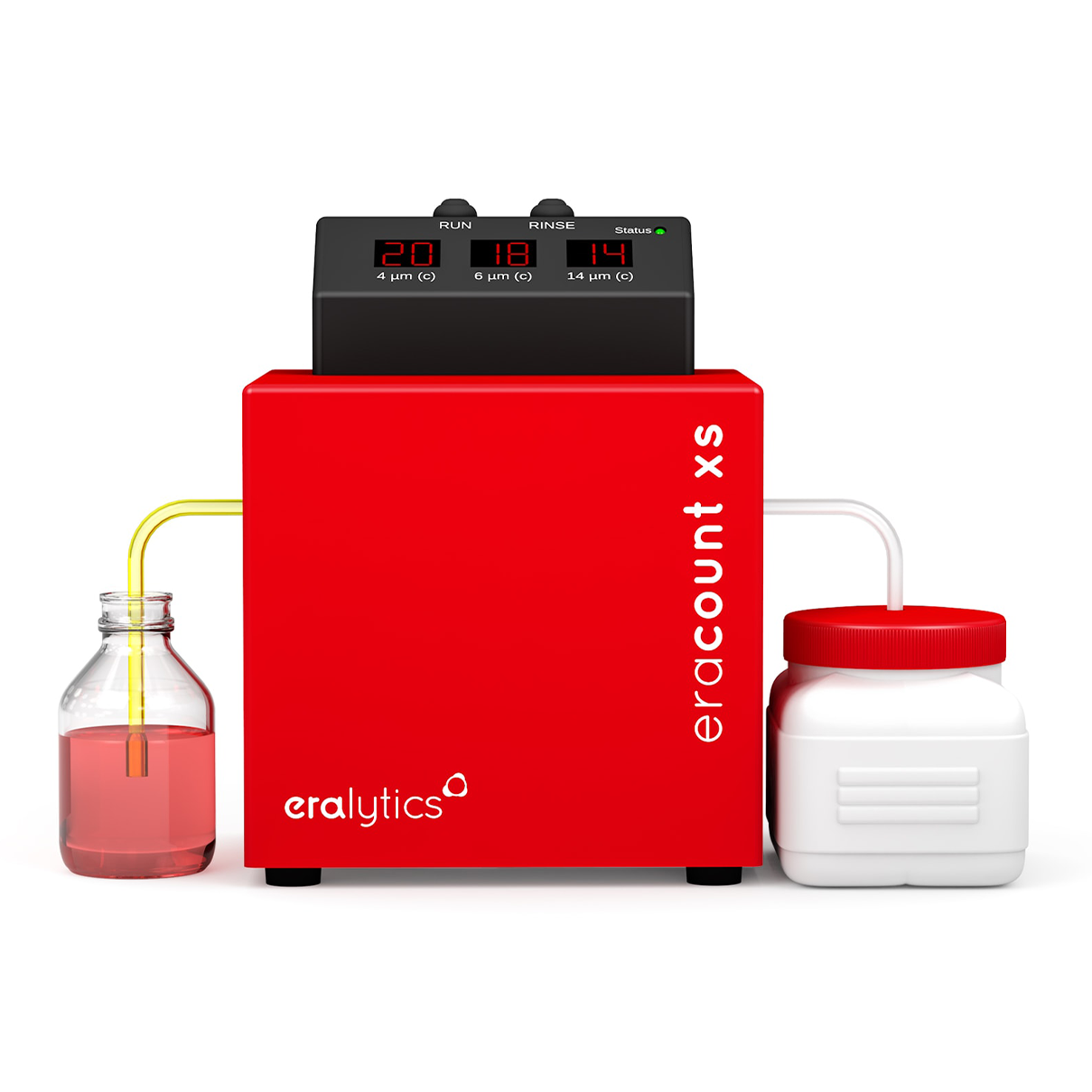

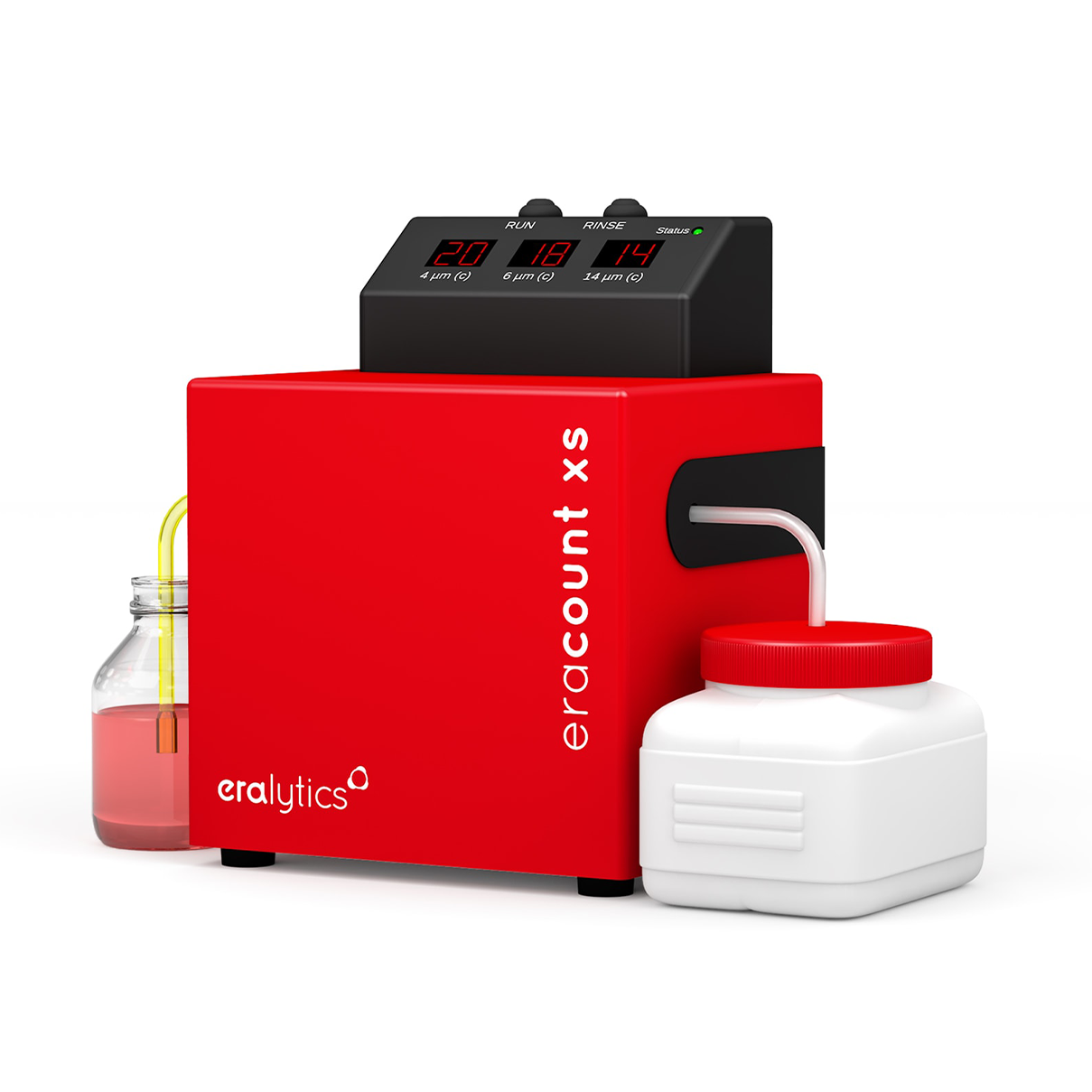

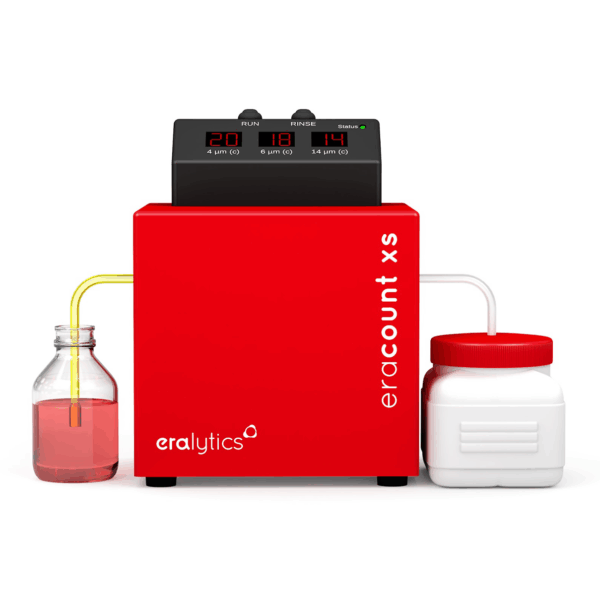

ERACOUNT XS
ERACOUNT XS is the smallest and fastest field particle counter, delivering results in just 60 seconds with only 10 mL of sample. Using laser-based technology, it measures ISO 4406 particle size channels ≥4 µm(c), ≥6 µm(c), and ≥14 µm(c). When connected to other eralytics analyzers, it expands to eight size channels for detailed monitoring. Compact (3 kg), robust, and housed in all-metal, ERACOUNT XS withstands harsh conditions, extreme temperatures, and vibrations. Ideal for contamination detection and condition monitoring in oils, fuels, and test rigs, it is calibrated to ISO 11171 and traceable to NIST, ensuring highly accurate and reliable measurements in the field.
What can we do for you?
If you want more specific information regarding this product, please contact our Sales team.
We are happy to assist you.
Features & Benefits
- Measures ISO 4406 particle size channels ≥ 4 µm(c), ≥ 6 µm(c), and ≥ 14 µm(c) in 60 seconds with only 10 mL of sample.
- Calibrated to ISO 11171 standards and traceable to NIST, suitable for assessing lubricant or petroleum cleanliness up to 1000 cSt at 22°C.
- Achieves full performance when connected to other eralytics analyzers such as eravisc X or eraspec oil FTIR spectrometer.
- Flow rate: Default 10 ml/min, optional 25 ml/min.
- Sample volume: 5 ml at 10 ml/min, 12.5 ml at 25 ml/min.
- Power requirements: 24 VDC, max. 80 W.
- Very Compact design and light weight
