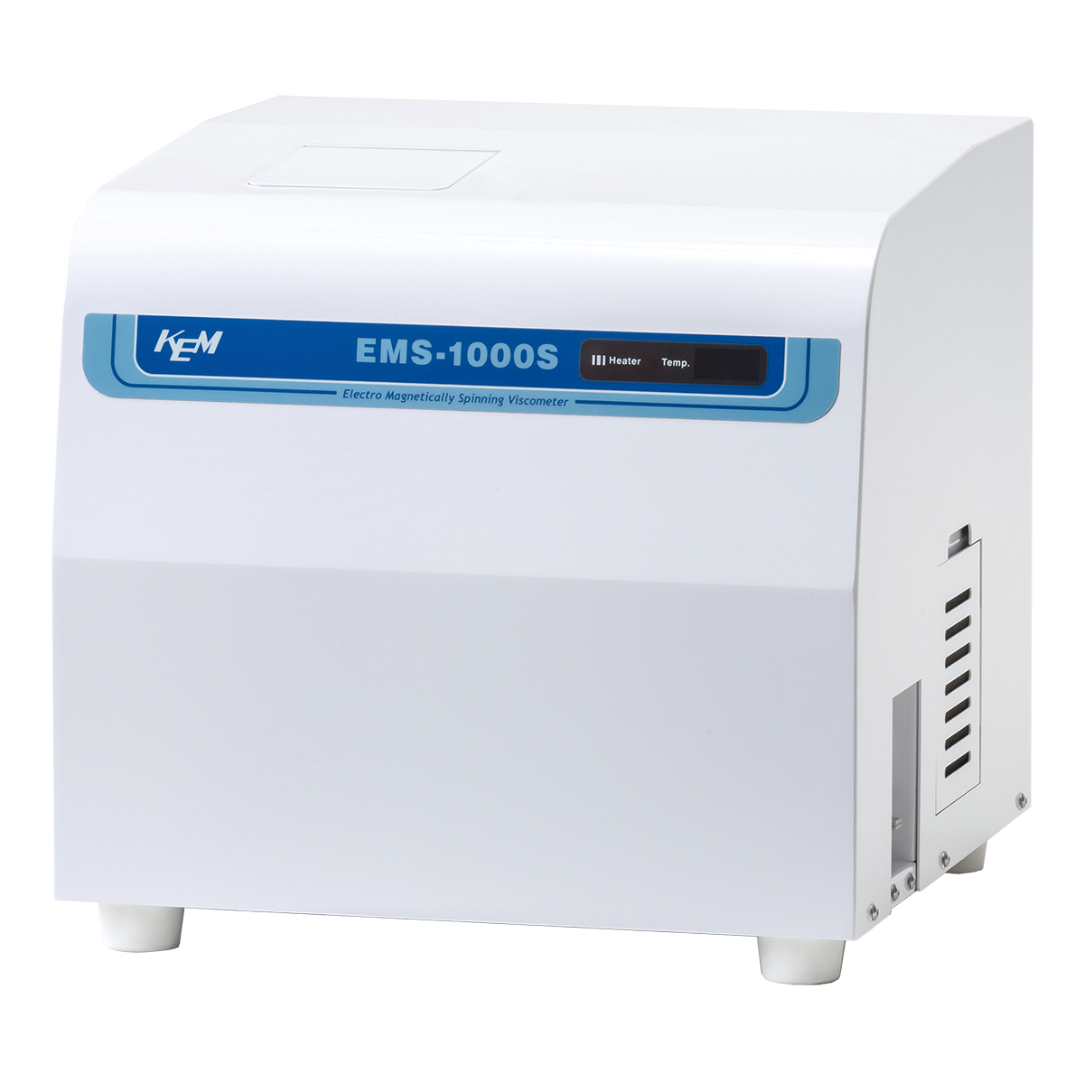

EMS-1000S Electro Magnetically Spinning viscometer
The EMS Viscometer is an advanced instrument for precise viscosity measurements with minimal sample volume. It measures fluids from 0.1 to 1,000,000 mPa·s and quickly evaluates viscosity changes from 0 to 200°C. Using a spherical probe spun by the Lorentz force, it ensures high accuracy and repeatability, outperforming conventional rotational viscometers. Key advantages include disposable, contact-free measurement tubes, eliminating clean-up and contamination risks. The autoclavable, hermetically sealable tube supports sterile and anaerobic conditions. The EMS-1000S requires just 90µL of sample, making it ideal for rare and expensive fluids. This viscometer is well-suited for advanced rheological analysis and temperature-dependent viscosity studies.
What can we do for you?
If you want more specific information regarding this product, please contact our Sales team.
We are happy to assist you.
Features & Benefits
Features:
- Innovative Measurement Technology: Uses electromagnetic force to apply torque to a spherical probe, allowing measurement without direct contact.
- User-Friendly Interface: Displays measurement results, sample status, and historical data on one screen for easy comparison.
- Versatile Probe Selection: Multiple probe options optimize accuracy for different sample types (water, blood, polymers, resins, etc.).
- Minimal Sample Requirement: Standard 300 μL, with an optional small container allowing as low as 90 μL.
- Wide Temperature Control: Operates from 0 to 200°C with ±0.1°C stability.
- Broad Viscosity Range: Measures from 0.1 to 100,000 mPa·s with a single setup.
- Fast Measurement: Takes 1 second for low-viscosity samples, around 1 minute for higher viscosities.
- Rheological Analysis: Adjustable shear rate (0.01 to 150s⁻¹) enables flow curve determination.
- Disposable Sample Containers: No cleaning required, preventing cross-contamination.
- Autoclave Sterilization & Anaerobic Measurements: Ideal for sterile environments and inert-gas conditions.
Benefits:
- Eliminates Contamination Risks: Completely separates sample from device, allowing sample reuse.
- Saves Time & Sample Material: Requires minimal sample volume and delivers rapid results.
- Enhances Accuracy & Repeatability: Wide-range probes ensure precise measurements.
- Improves Workflow Efficiency: No need for rotor changes or container cleaning.
- Expands Application Possibilities: Suitable for industries like pharmaceuticals, food, petroleum, and research labs.Onderkant formulier
