Dual Foaming Bath

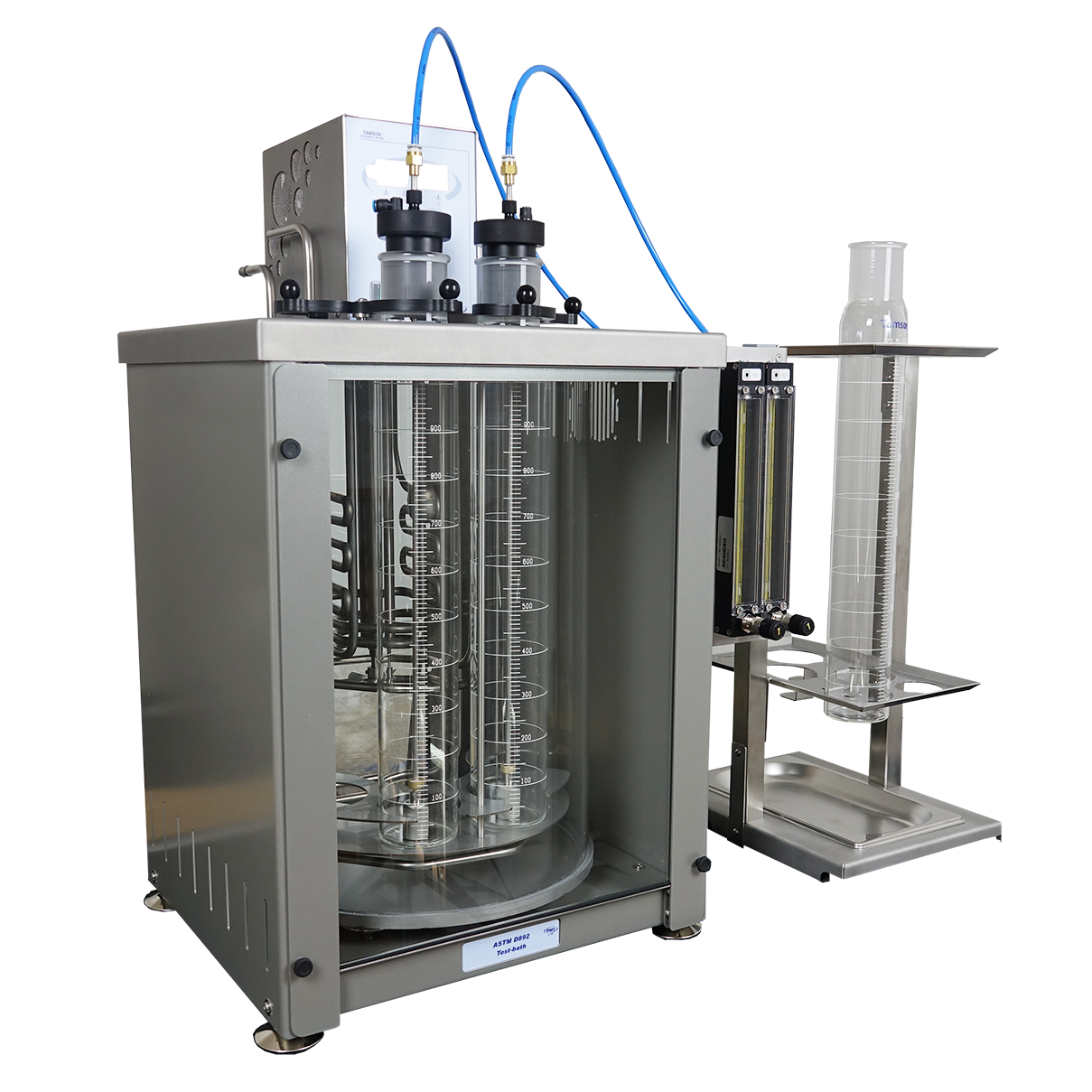

The Tamson D892 apparatus tests the foaming characteristics of lubricating oils at 24°C and 93.5°C, addressing issues like inadequate lubrication, cavitation, and overflow. It features two visibility baths (one for high and one for low temperatures), each with a 300 mm diameter and 450 mm height glass jar.
The baths have powder-coated cases, stainless steel covers, and cooling coils, accommodating up to four 1000 ml foam cylinders. The system includes a rack for cooling foam cylinders, four flow meters, and a removable spill tray. Benefits include high temperature stability, a robust construction, and CE compliance. Optional digital mass flow meters and configurations for ASTM D6082 and D1881 tests are also available.
What can we do for you?
If you want more specific information regarding this product, please contact our Sales team.
We are happy to assist you.
Features & Benefits
- Capacity and Design
-
- Up to four positions per bath for simultaneous testing.
- Two visibility baths for high (93.5°C) and low (24°C) temperatures.
- Baths made with 300 mm diameter and 450 mm height glass jars.
- Zincor powder-coated metal case with removable glass windows and stainless steel cover.
- Equipped with two cooling coils per bath, accommodating up to four 1000 ml foam cylinders.
- Temperature Control and Stability
-
- Stirrer with long shaft for optimal temperature uniformity.
- Extreme temperature stability with precise setting (0.01°C increments).
- Convenience and Safety
-
- Drain valve for safe and easy emptying.
- Separate opening for adding bath fluid.
- Rack with clamps to secure foam cylinders and overcome buoyancy.
- Adjustable levelling feet for stability.
- Delrin stoppers to prevent cracking over time.
- Removable window panels for easy cleaning.
- Spill tray for easy cleanup.
- Additional Equipment and Safety Features
-
- Optional TLC15-5 cooling circulator ensures stable and precise 24°C operation.
- CE compliance and safety features like a mechanical resettable thermostat and float indicator for low bath fluid.
- Optional digital mass flow meters and compatibility with ASTM D6082, ASTM D1881 standards.
