DR10 Heater Tube Deposit Rater
The DR10 instrument revolutionizes the evaluation of aviation turbine fuels by providing a quantitative measurement of tube deposits. Unlike the subjective visual rating system, the DR10 uses interferometry (ITR) to accurately determine deposit thickness in nanometers. This compact instrument can be easily installed and operated, providing a comprehensive test report within 15 minutes.
The report includes a 3-D profile of deposit distribution, the Standard Spot value (mean deposit thickness of the thickest 2.5 mm² area), average and maximum deposit thickness values, and the calculated total deposit volume. This innovative method enhances the understanding of fuel performance and improves the characterization of jet fuels for users and suppliers.
What can we do for you?
If you want more specific information regarding this product, please contact our Sales team.
We are happy to assist you.
Features & Benefits
- Quantitative measurement: Provides an objective analysis of deposit thickness on the heater tube.
- Instrumental method: Utilizes an interferometry technique (ITR) for precise measurement of deposit thickness in nanometers.
- Simple and straightforward operation: The test procedure is prepared according to ASTM D3241 and the instrument has an intuitive graphical interface with a touch screen panel.

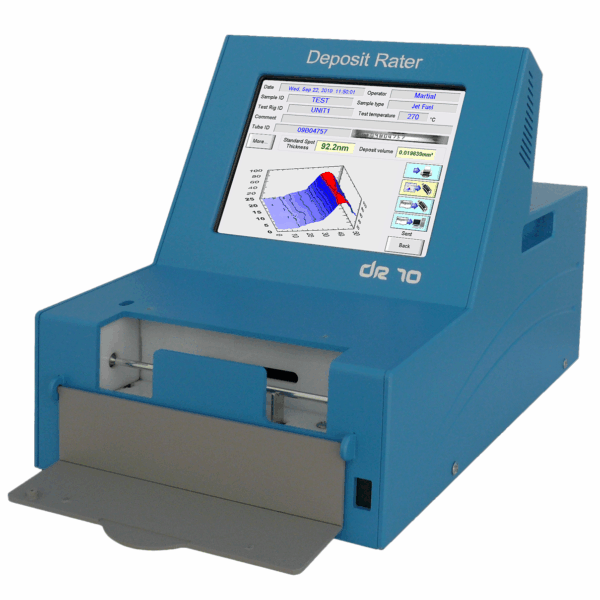

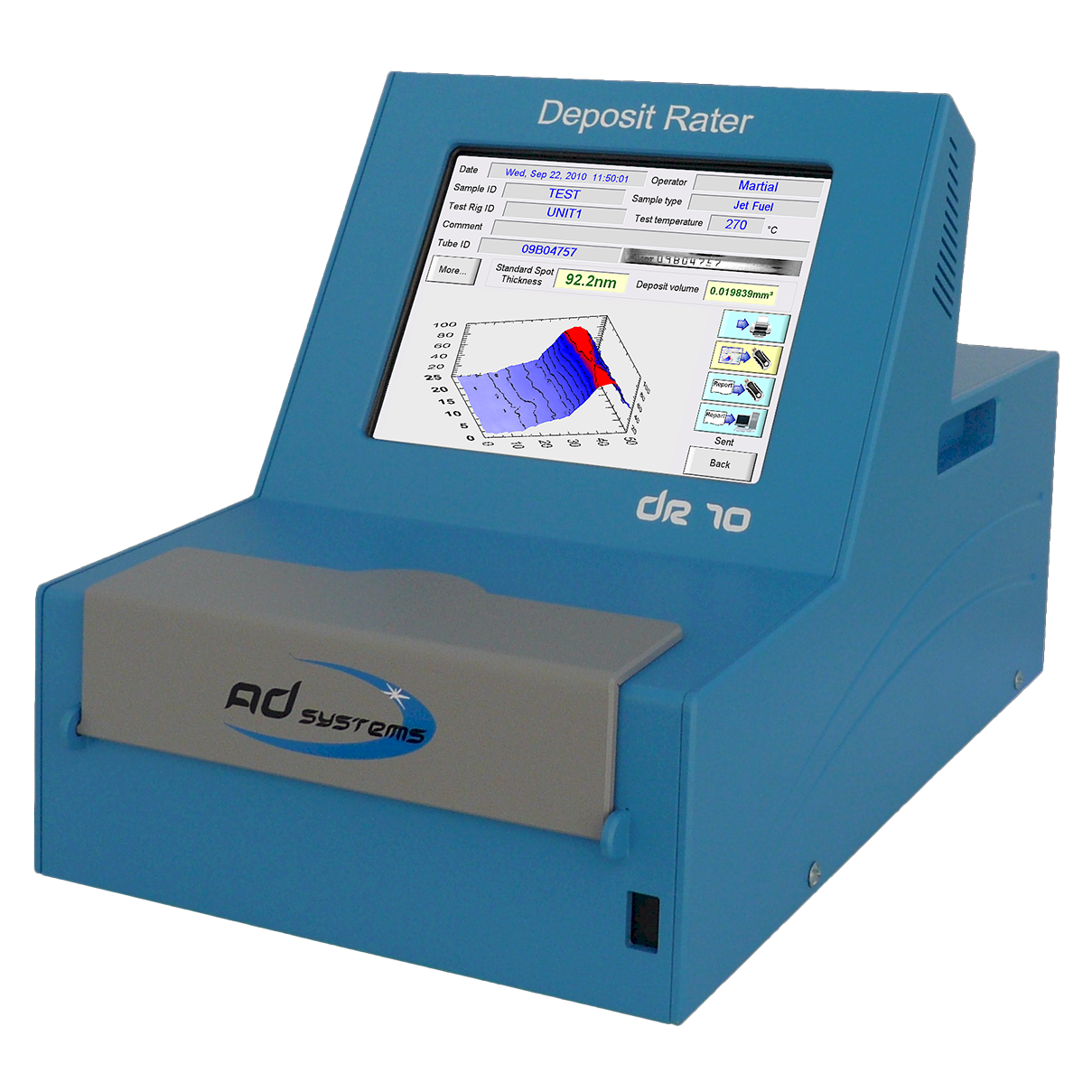

- Detailed test report: Provides a 3-D profile of the deposit distribution on the tube surface, including the Standard Spot value, average thickness, maximum thickness, and total deposit volume.
- Reduced subjectivity: The instrumental method eliminates the subjective evaluation of color, providing a more accurate and reliable assessment of deposit thickness.
- Improved accuracy: The interferometry technique ensures precise measurement of deposit thickness in nanometers, offering a more detailed understanding of fuel performance during gas turbine operation.
- Time-saving: The DR10 test generates a detailed test report in less than 15 minutes, allowing for quick analysis and decision-making
