Corrosiveness to Copper from Petroleum Products

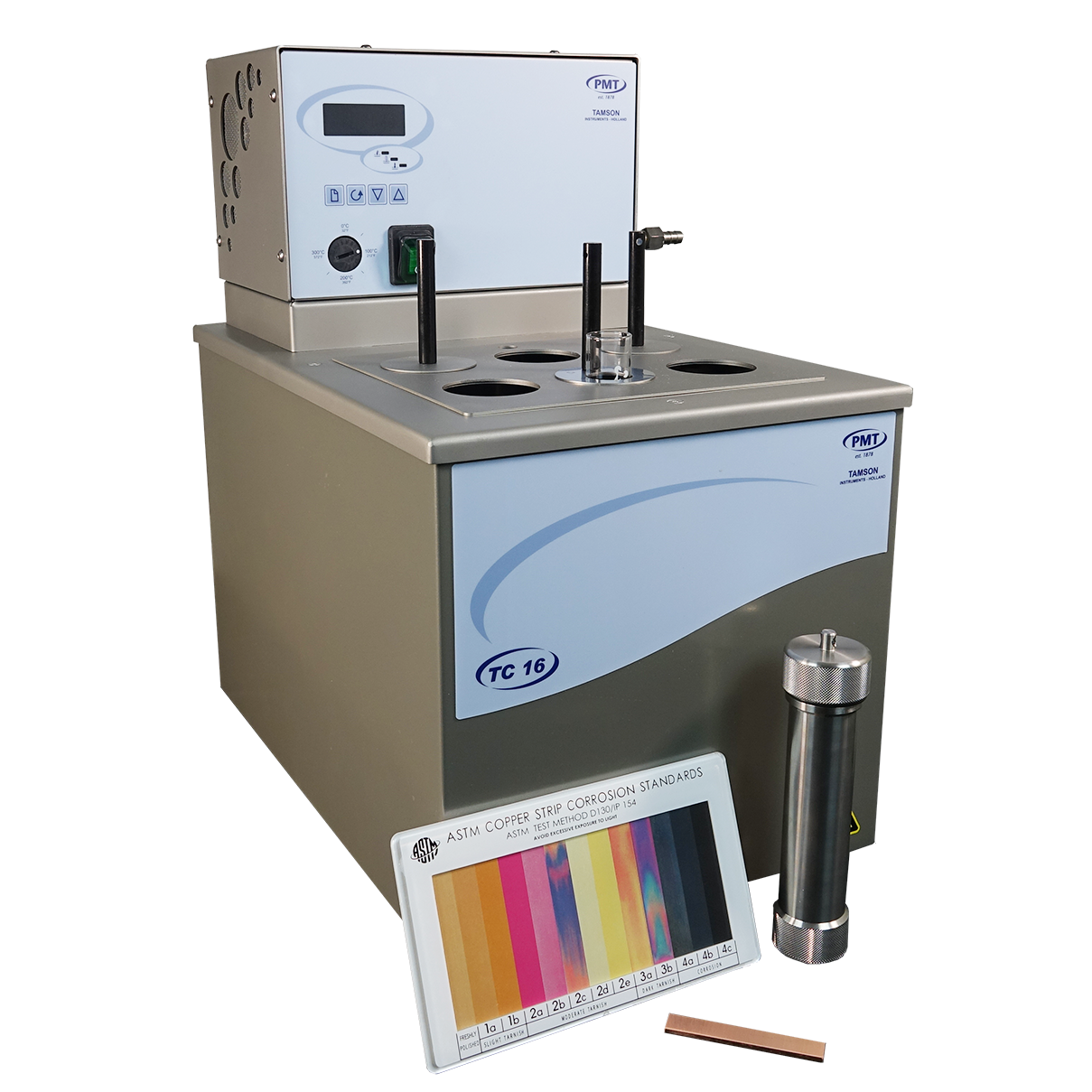

The test method covers the detection of the corrosiveness to copper of aviation gasoline, aviation turbine fuel, automotive gasoline, natural gasoline, or other hydrocarbons having a Reid Vapour Pressure no greater than 18 psi. The cover of the bath has six openings, each with a lid and hook for suspending a copper corrosion test vessel. The openings can also accommodate test tubes in holders. The temperature range is from ambient +5°C to 250°C. This is the widest temperature range on the market, enabling users to test the corrosiveness to copper at very high temperatures. The bath is equipped with a bath drain, which enables safe and easy bath fluid replacement. A cooling coil is integrated to work at temperatures close to the ambient temperature. An optional cover with nine openings is available to test nine samples, larger baths for 18 or 63 positions are available.
What can we do for you?
If you want more specific information regarding this product, please contact our Sales team.
We are happy to assist you.
Features & Benefits
- Detection Range: Corrosiveness to copper for various fuels and hydrocarbons with Reid Vapour Pressure ≤ 18 psi.
- Bath Design:
- Six openings with lids and hooks for test vessels or test tubes.
- Temperature range: Ambient +5°C to 250°C (widest on the market).
- Integrated bath drain for easy fluid replacement.
- Cooling coil for near-ambient temperature operations.
- Optional cover with nine openings for testing more samples.
- Accuracy:
- Stable working temperature of ±0.02°C.
- Set point adjustable in 0.1°C steps from 0°C to 250°C.
- Display accuracy of 0.1°C; internal controller accuracy of 0.01°C.
- Temperature Readout: Standard in Celsius, optional in Fahrenheit.
- Pump: Usable for circulating bath content externally when not used for corrosion tests.
- Safety:
- CE regulation compliant.
- Mechanical resettable safety thermostat.
- Optional level protection device for low bath fluid warning.
- Additional Configurations:
- Bath with 18 positions available.
- Cover and levelling platform for 63 glass test tubes for non-volatile samples.
