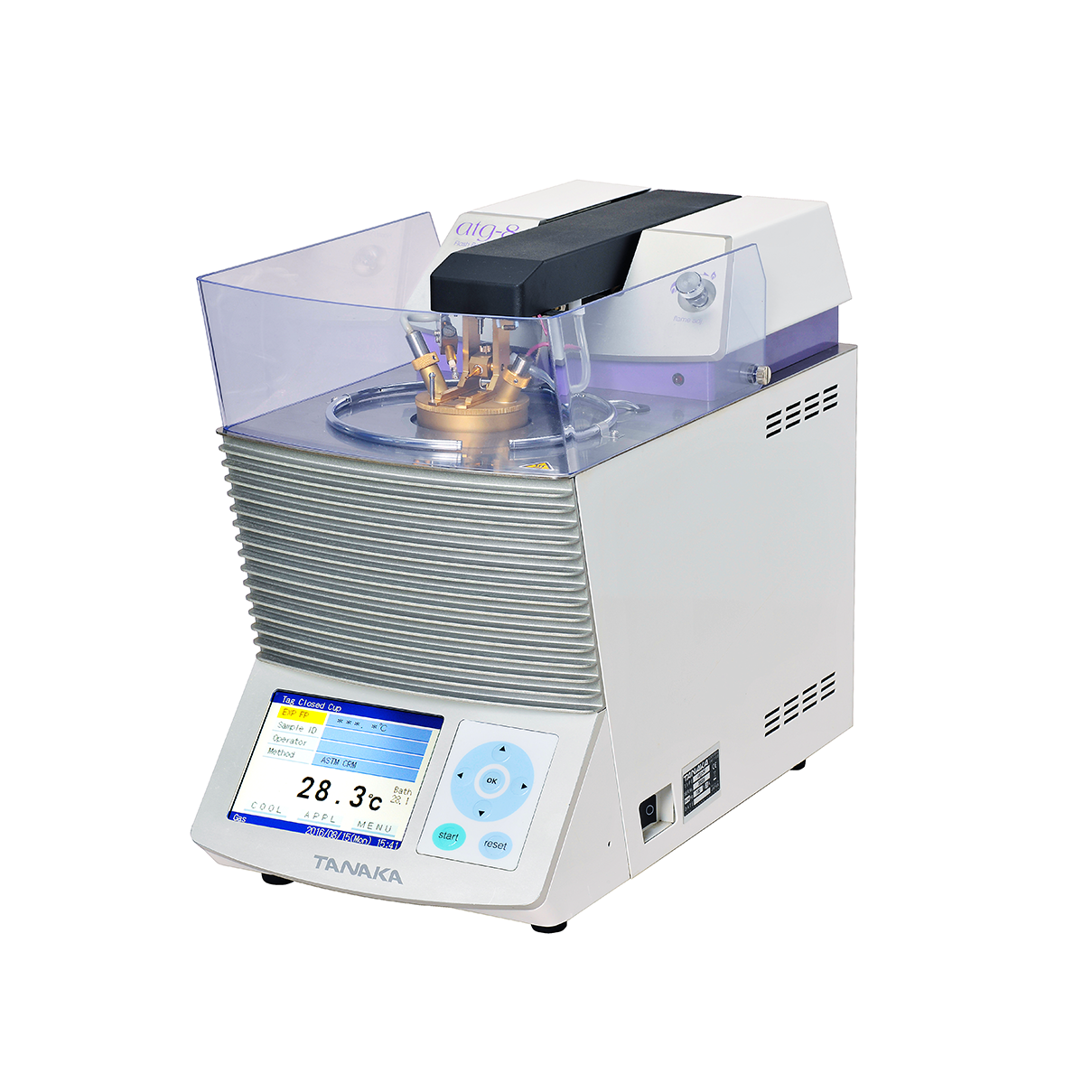

ATG-8 Automated Tag Closed Cup Flash Point Tester
The Tanaka Automated Tag Closed Cup Flash Point Tester, available in three models (ATG-8wfc, ATG-8afc, ATG-8lfc), is an innovative solution designed for petroleum laboratories to determine flash points with accuracy and efficiency. It features an ergonomic design with color-coded displays and switches, offering intuitive operation and a universal design for easy use.
These testers feature an intuitive color-coordinated display and switches, USB connectivity for easy data management, and enhanced safety with a fire containment system. The robust build and high-quality finish ensure longevity, while the versatile design supports various test methods and additional functionalities.
The tester uses a unique Swing Arm Assembly for simplified setup and cleaning. It supports ASTM D56, IP 304, and JIS K2265-1 test methods, while model variations cater to different temperature ranges: ATG-8wfc for ambient to +95℃, ATG-8afc for +5℃ to +75℃, and ATG-8lfc for -20℃ to +95℃ with an optional chiller. All models include RS-232C/USB ports for easy connectivity and have compact dimensions for efficient lab space usage.
What can we do for you?
If you want more specific information regarding this product, please contact our Sales team.
We are happy to assist you.
Features & Benefits
- Ergonomic Design: A color-coded display and intuitive controls for ease of use.
- Versatile Functionality: Includes a USB port for data transfer, password protection, and ample data storage.
- Robust Construction: Durable materials and a high-quality finish ensure long-term reliability.
- Enhanced Safety: A built-in fire containment system that can extinguish fires with quenching gas (N2 or CO2) from an external port. This feature is standard in the ATG-8wfc, ATG-8afc, and ATG-8lfc.

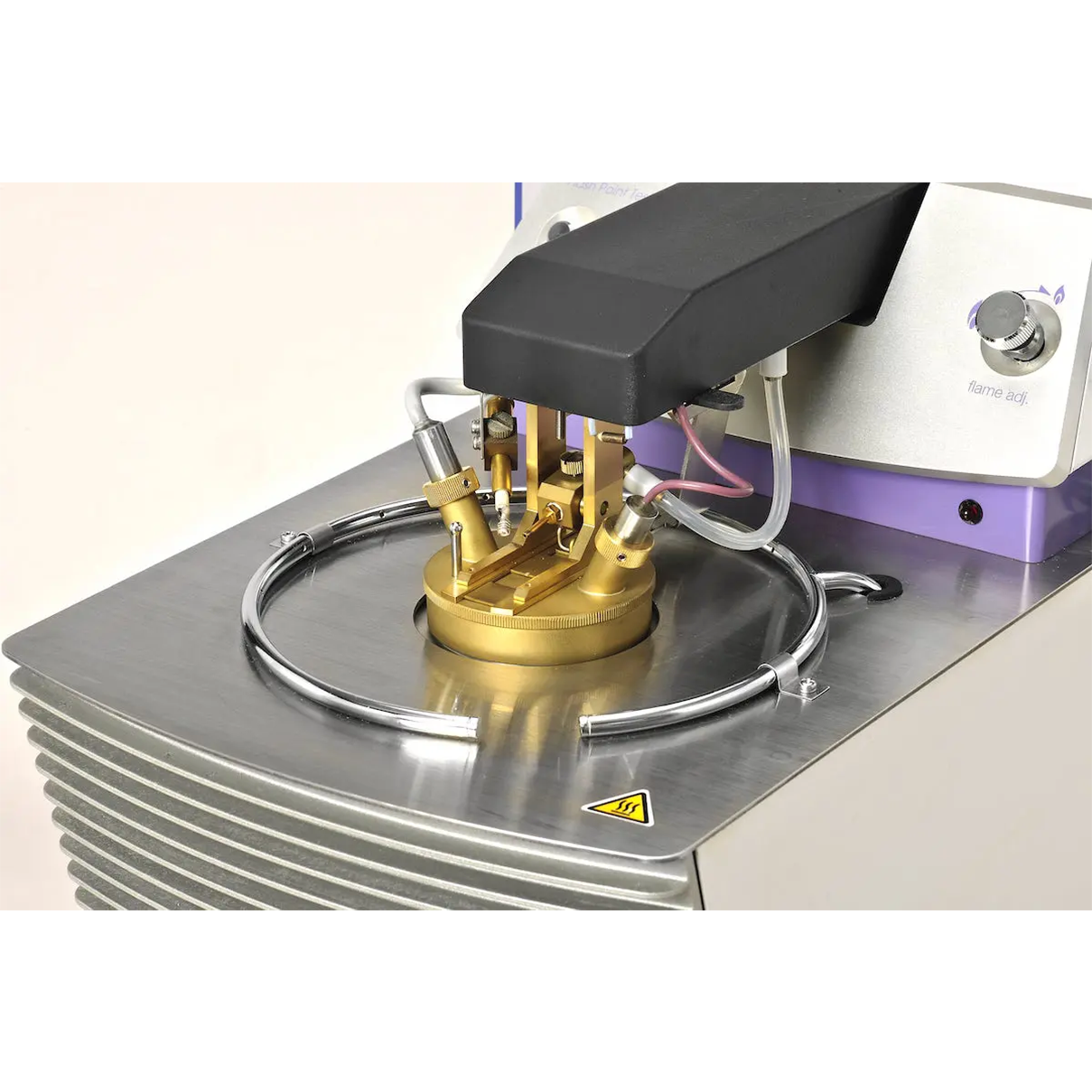

- Swing Arm Assembly: Simplifies setup and cleaning. After placing the test cup, the swing arm assembly integrates all testing components, including the ignition source, temperature sensor, flash detector, and stirrer. It can be easily lifted for cleaning after the test.
- Flexible Temperature Range: The atg-8wfc supports temperatures from ambient to +95℃, the ATG-8afc from +5℃ to +75℃, and the ATG-8lfc from -20℃ to +95℃ (with an optional chiller).
- Standards Compliance: Compatible with ASTM D56 and IP 304.
- Ignition Options: Can use either a gas flame or an electric coil for ignition.
- Compact Design: Measures 230 x 470 x 390 mm, weighing 19 kg, for easy installation in various lab settings.
