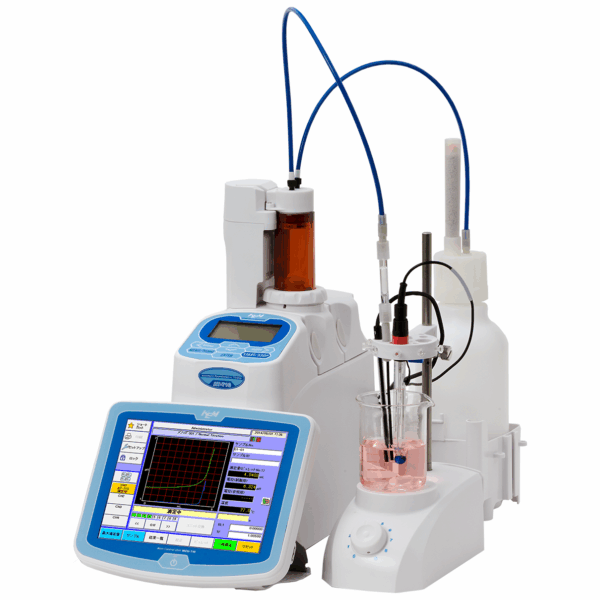

AT-710S Automatic Potentiometric Titrator
The Automatic Potentiometric Titrator AT-710S features an 8.4-inch color TFT-LCD touch panel for intuitive operation and efficient titration processes. It includes smart technologies like IC chip-enabled electrode cables and burettes that store calibration and usage data, reducing recalibration needs.
A redesigned burette minimizes titrant waste, while dual potential logging (e.g., pH and temperature) enhances data precision. Measurement results can be saved as PDFs to USB drives for eco-friendly, paperless documentation. The system supports diverse titration methods, complies with GLP standards, and offers extensive storage for data and methods. Applications span industrial, medical, food, and petroleum sectors, adhering to ASTM, ISO, and JIS standards. Optional accessories like multiple sample changers and data acquisition software further expand functionality.
What can we do for you?
If you want more specific information regarding this product, please contact our Sales team.
We are happy to assist you.
Features & Benefits
General Features
- Large Color Touchscreen: 8.4-inch TFT-LCD with a touch panel for intuitive operation.
- Smart Electrode and Burette Technology:
- Electrode cables store calibration results and maintenance history, reducing recalibration time.
- Burette unit includes an IC chip for titrant information storage (factor measurement, reagent history, etc.).
- Enhanced Burette Design: Reduced dead space and minimal residual titrant during replacement.
- Data Management: Measurement results are saved as PDFs on USB drives, eliminating the need for printing.
- Simultaneous Input Logging: Logs two potential readings (e.g., pH and conductivity) concurrently.
Operational Capabilities
- Multiple Titration Modes: Supports various titration types (acid/base, redox, precipitation, photometric, etc.).
- Temperature Monitoring: Ensures safety during titration processes.
- Calculation and Analysis: Offers statistical data processing (mean, SD, RSD) and concentration calculations.
- GLP Compliance: Operator registration and user group management enhance traceability.
- Data Storage: Capacity for up to 500 sample records.
Technical Specifications
- Detection Range:
- Potentiometric: ±2000 mV
- pH: -20.000 to 20.000
- Temperature: 0–100°C
- Precision Burettes:
- 20mL standard burette with optional sizes (1mL to 50mL).
- High accuracy and reproducibility.
- External Connectivity:
- USB for printers, flash drives, and peripherals.
- RS-232C for balances and additional devices.
- Input terminals for temperature sensors and electrodes.
Applications
- Applicable across industries: Medical, Food, Petroleum, Industrial products.
- Standards compliance includes ASTM, ISO, JIS, IEC, and UOP methods for diverse testing needs (e.g., acidity, hardness, bromine index).
Accessories and Options

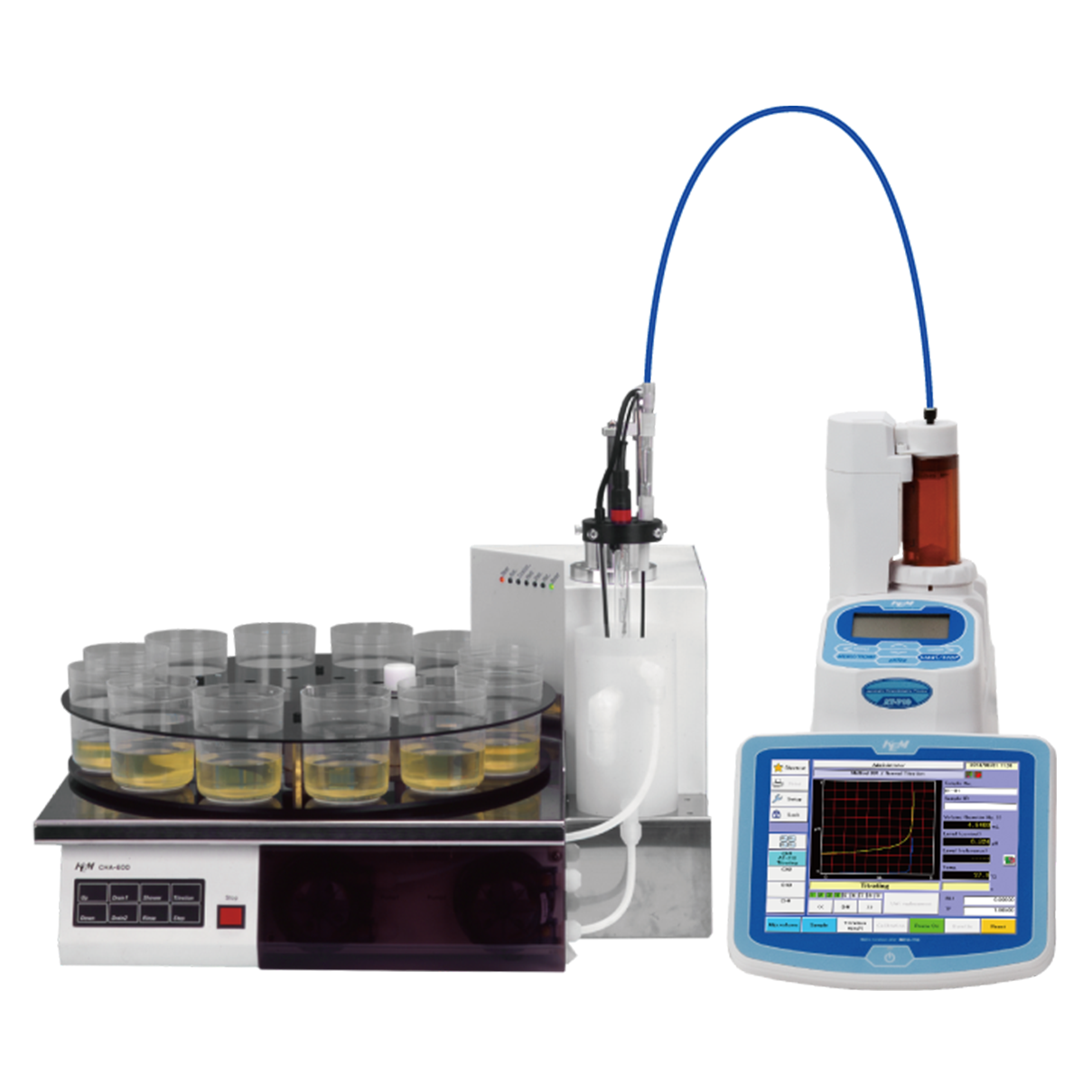

- Sample Changers: Automates Titration for up to 47 samples (various models available).
- Specialized Units:
- Micro Titration Cell for limited sample volumes.
- Sealed Flask Assembly for air-sensitive titrations.
- Additional Equipment:
- Magnetic and propeller stirrers.
- Manual cleaning unit for easy maintenance.
Software Integration
- SOFT-CAP Software: Enables direct download of measurement data for further processing.
