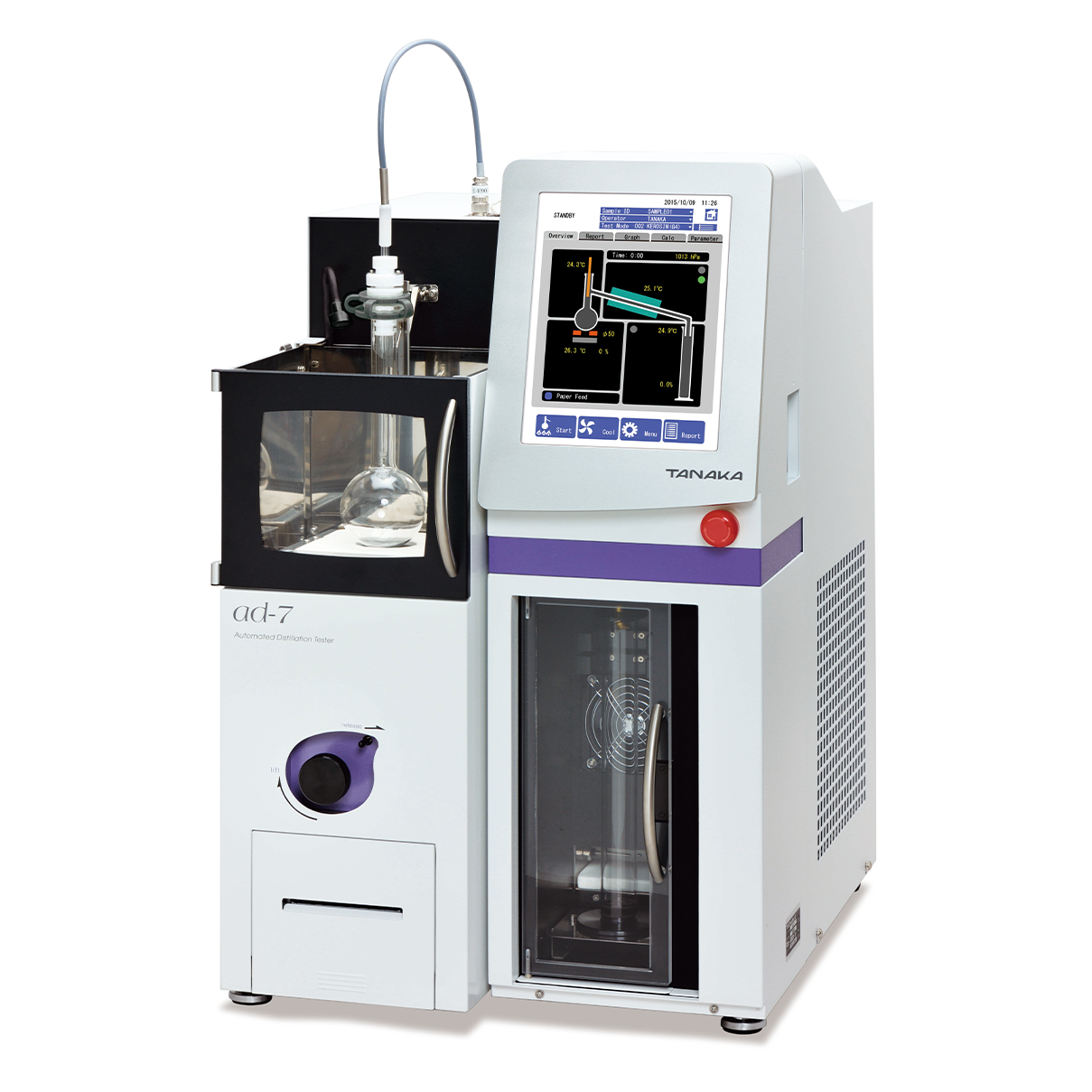

AD-7 Automated Distillation Tester
The AD-7 Automated Distillation Tester is a highly advanced and adaptable solution designed for precise distillation testing of petroleum products and narrow-boiling-range samples. It features a large, easy-to-use 10.4-inch color touchscreen interface, providing intuitive controls and advanced data management through the Tanaka Data Acquisition System (TDAS). The integrated Peltier system offers efficient cooling and heating for the condenser and receiver cylinder compartment, ensuring reliable operation.
To maximize safety and enable continuous operation, the AD-7 is equipped with a Fire Containment System that automatically shuts off the heater and releases CO2 in the event of a fire. It also includes an overheat protection mechanism for added security. The tester’s versatility is demonstrated by its 200 test modes, the ability to store up to 5,000 test results, and a range of connectivity options, including RS-232C, USB, and Ethernet.
Compliant with major industry standards such as ASTM and ISO, this robust distillation tester serves clients in over 70 countries. The AD-7 is designed to meet the diverse needs of its users, with extensive test capacity and reliable safety features that ensure uninterrupted operation.
What can we do for you?
If you want more specific information regarding this product, please contact our Sales team.
We are happy to assist you.
Features & Benefits
- User-Friendliness
- Large 10.4-inch color LCD touch screen for intuitive operation, 4 times larger than the previous model.
- Advanced data management through TDAS (Tanaka Data Acquisition System) for efficient data handling.
- Safety
- Fire containment system with automatic heater shutdown and CO2 gas flow to prevent accidents.
- Overheat protection and flask catcher to minimize risks of damage or injury.
- Versatility
- Up to 200 test modes, with storage for 5,000 test results.
- RS-232C, USB, and Ethernet connectivity for data transfer and device communication.
- Performance and Specifications
- Supports various test methods, including ASTM D86, ASTM D850, ASTM D1078, ISO 3405, IP 123, and JIS K 2254.
- Flexible distillation rate, adjustable from 2% to 9% with 0.5% increments.
- Compact and robust design with dimensions of 430 x 520 x 710 mm and a weight of 59 kg.
Additional Information
The AD-7 is designed with a Peltier system for cooling and heating, ensuring precise temperature control. It offers high performance, durability, and a user-friendly interface, making it ideal for a wide range of distillation applications. With its extensive safety features and versatile connectivity options, it provides reliable and secure operation in various industrial settings.
