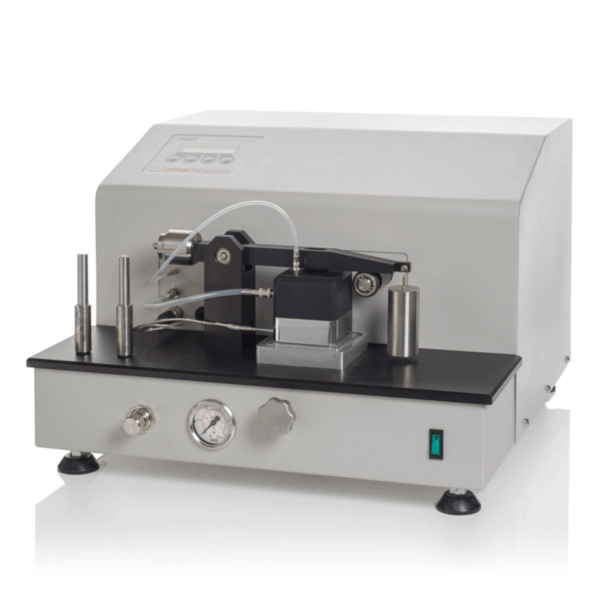

(ABS) Automated BOCLE System, Ball-on-Cylinder wear test system
Introducing ABS, the Automated BOCLE System by PCS, which is a fully automated wear test system that offers rapid and reliable assessment of aviation fuel lubricity. With its user-friendly interface and microprocessor control, ABS effortlessly executes the ASTM D5001 test sequence. By eliminating operator-induced variability, it guarantees consistent and accurate results.
The system features automatic flow controllers for precise humidity and air flow, reducing the need for manual adjustments. Simply load the pre-loaded ASTM D5001 test sequence, insert clean specimens, add fuel, and press ‘Start Test’. Additionally, PCS provides interchangeable probes, ensuring hassle-free measurement.
With ABS, you have a compact and self-contained system that provides a fast, repeatable assessment of the performance of jet fuels that fully conforms to the standard “Measurement of Lubricity of Aviation Turbine Fuels by the Ball-on-Cylinder Lubricity Evaluator,” requiring only compressed air and mains power.
What can we do for you?
If you want more specific information regarding this product, please contact our Sales team.
We are happy to assist you.
Features & Benefits
Main product features
- The PCS Automated BOCLE System (ABS) is included in the D5001 ASTM specification
- Simple to use interface -microprocessor control of all instrument functions
- Standard ASTM D5001 test sequence pre-loaded into ABS microprocessor controller – operator fits cleaned specimens, adds fuel sample and presses the ‘Start Test’ button
- Automatic control of test sequence – no operator-induced variability in test results
- Automatic flow controllers for moist and dry air – no operator input required to control the humidity and flow rate of the conditioned air
- Optional PC-based data logging software – allows test data to be recorded as a permanent record (available for both D5001 and D6078)
- Interchangeable humidity and temperature probes – humidity and temperature measurement does not need to be re-calibrated – Simply exchange the combined relative humidity and temperature probe for a pre-calibrated unit

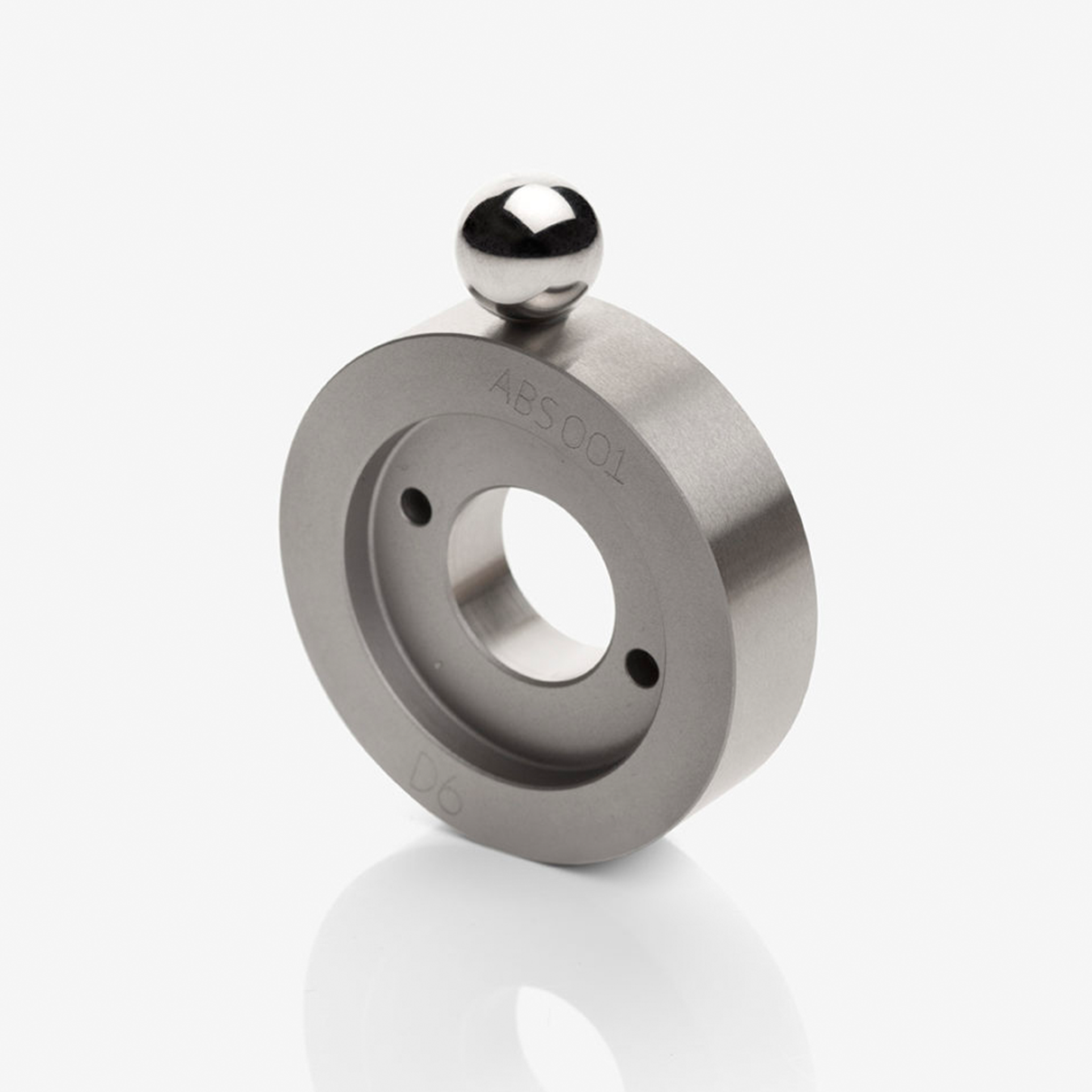

- PCS manufactures the ABS test rings – single source supplier of test rings and specimens leads to higher quality control
