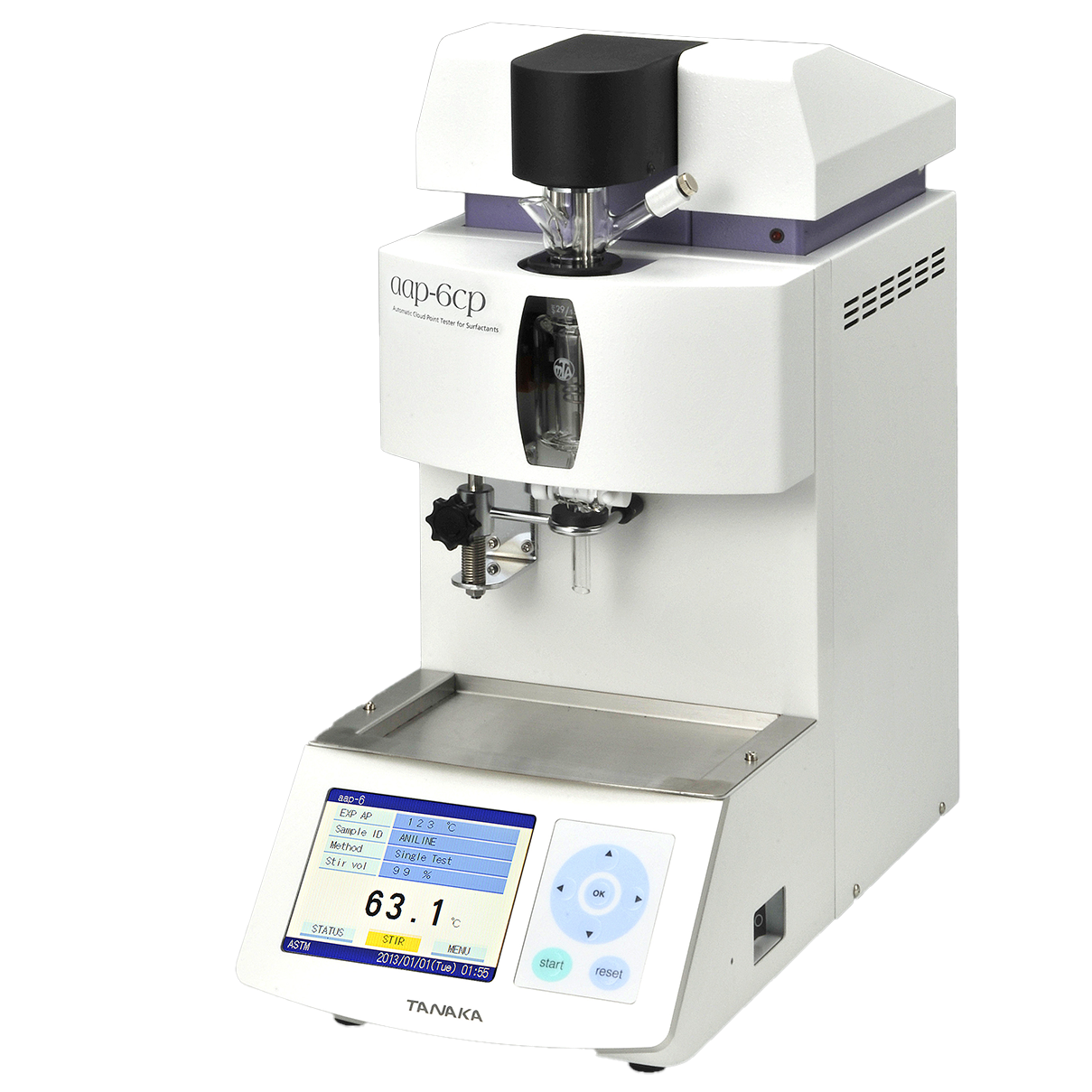

AAP-6cp Automatic Cloud Point Tester for Surfactants

Tanaka Scientific Limited



The AAP-6cp Automatic Cloud Point Tester simplifies cloud point testing for Non-Ionic Surfactants, helping users analyze temperature-dependent solubility. This compact, all-in-one device features a color LCD, easy switch operation, and connectivity via Ethernet and USB for LIMS integration, data storage, and security.

Its design includes a removable measuring cell with an optional water jacket for sub-ambient testing. Users simply input the sample and expected cloud point, while the tester automates heating, cooling, and detection. Key features include a temperature range of ambient +20 to 90°C, a Pt100 sensor, photoelectric cloud point detection, and multiple I/O ports. Safety is enhanced with built-in safeguards and auto-shutoff for issue detection, ensuring reliable operation.

What can we do for you?

If you want more specific information regarding this product, please contact our Sales team.
We are happy to assist you.

Features & Benefits

Importance of Cloud Point Testing for Non-Ionic Surfactants

  • Temperature-Sensitive Solubility: Identifies temperature where surfactants start phase-separating, critical for maintaining formulation stability.
  • Stability & Performance in Formulations: Ensures surfactants remain effective within temperature ranges, crucial for applications like cleaning where high temperatures are used.
  • Shelf Life & Product Quality: Helps select surfactants that prevent separation over time, extending shelf life for products like cosmetics and paints.
  • Emulsification Control: Ensures emulsions are stable within temperature variations, enhancing product reliability in oil-water mixtures.
  • Environmental Compliance: Supports eco-friendly product design by keeping surfactant activity within specified temperature limits.

Model AAP-6cp Automatic Cloud Point Tester Features

  • Automated Testing: Simple operation with automated heating, cooling, and cloud point detection, reducing manual intervention.
  • User-Friendly Design: Color LCD display, ergonomic controls, and intuitive operation for ease of use.
  • Versatile Connectivity: Equipped with Ethernet, USB, and RS-232C ports for data storage, LIMS integration, and additional device connections.
  • Flexible Measurement Range: Covers ambient +20 to 90℃, with optional sub-ambient testing using a water-jacketed cell.
  • Safety Mechanisms: Includes automatic shut-off and alerts for sensor, light, or battery issues, ensuring safe operation.
  • Compact and Lightweight: Space-saving all-in-one design with a 14 kg weight, making it easy to handle and install.

Technical Specifications

  • Temperature Sensor: Pt100 in stainless steel sheath for accurate readings.
  • Cloud Point Detection: Uses a photo-electric cell with specialized detection circuitry for precision.
  • Power Supply: Compatible with AC100V to 240V, ensuring flexibility for various laboratory environments.

Methods

  • ASTM D2024

In correlation to
